Widia

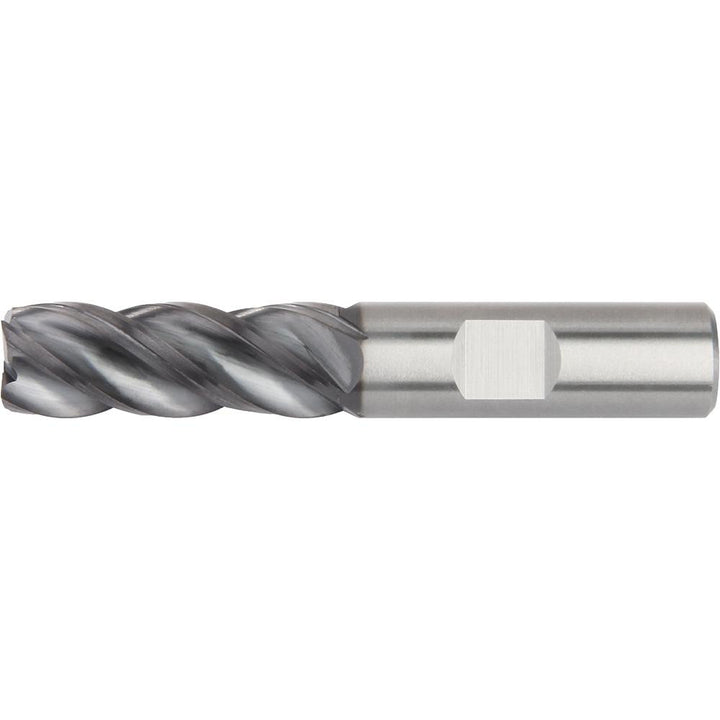

1/2in" 4-Flute Solid Carbide Square End Mill, WP15PE - Widia 5576623
MFR# 5576623Series 4V05
$203.15List $256.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingWP15PE
Description
The Widia 5576623 is a 1/2in 4-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium, hard material. 2-1/2in length of cut, 4-1/2in overall length. Series 4V05.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishWP15PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle38
Length of cut in2-1/2in
Length typeRegular
Material gradeWP15PE
Mill diameter in1/2in
Neck diameter0.5000in
Neck length2.5000
Number of flutes4
Overall length in4-1/2in
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Reach length2.5
Secondary workpiece materialHigh Temperature Alloy
Shank diameter in1/2in
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
