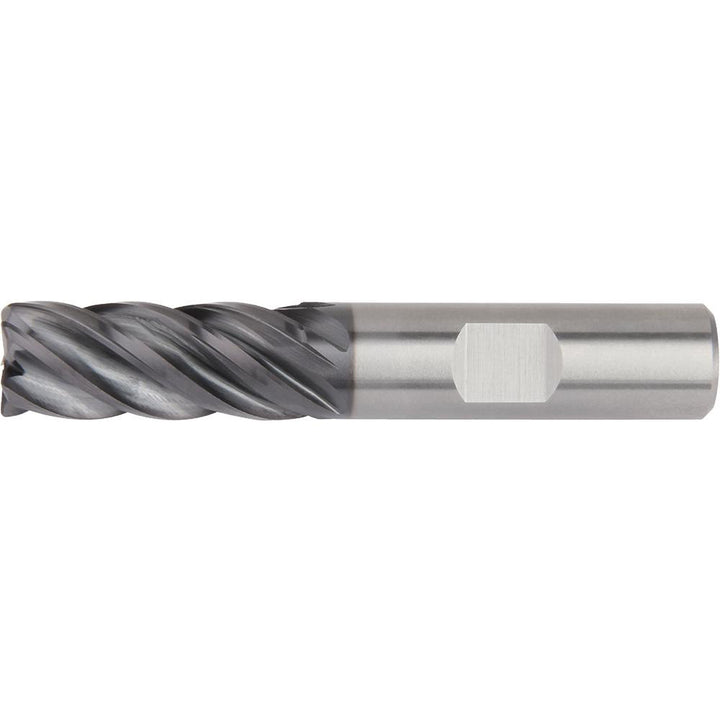

1/4" 5-Flute Solid Carbide Corner Radius End Mill, WP15PE - Widia 5577054

Widia

1/4" 5-Flute Solid Carbide Corner Radius End Mill, WP15PE - Widia 5577054

MFR# 5577054Series 5V0C

$66.99List $84.42 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingWP15PE

Description

The Widia 5577054 is a 1/4 5-flute Solid Carbide (WP15PE) corner radius end mill with a WP15PE finish for longer tool life. Suited for steel. 3/4 length of cut, 2-1/2 overall length. Series 5V0C.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishWP15PE
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4
Length typeRegular
Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material
Material gradeWP15PE
Material removal typeRoughing & Finishing
Mill diameter in1/4
Number of flutes5
Overall length in2-1/2
PitchClose
Primary workpiece materialSteel
Reach length in3/4
Secondary workpiece materialStainless Steel; Cast Iron
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
