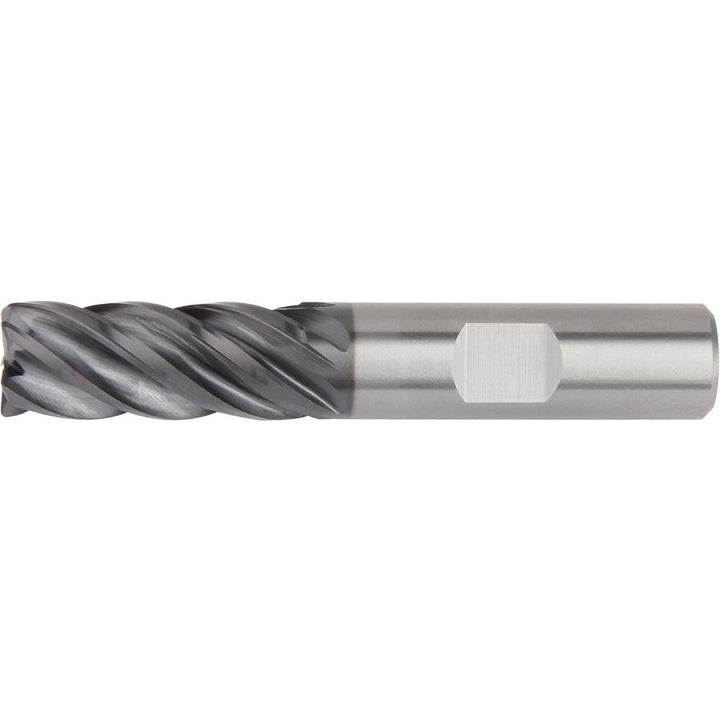

3/4" 5-Flute Solid Carbide Corner Radius End Mill, WP15PE - Widia 5577137

MFR# 5577137Series 5V0C

$390.48List $500.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5577137 is a 3/4 5-flute Solid Carbide (WP15PE) corner radius end mill with a WP15PE finish for longer tool life. Suited for steel. 1-1/2 length of cut, 4 overall length. Series 5V0C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in1-1/2

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeWP15PE

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes5

Overall length in4

PitchClose

Primary workpiece materialSteel

Reach length1.5000

Secondary workpiece materialStainless Steel; Cast Iron

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexYes
