Widia

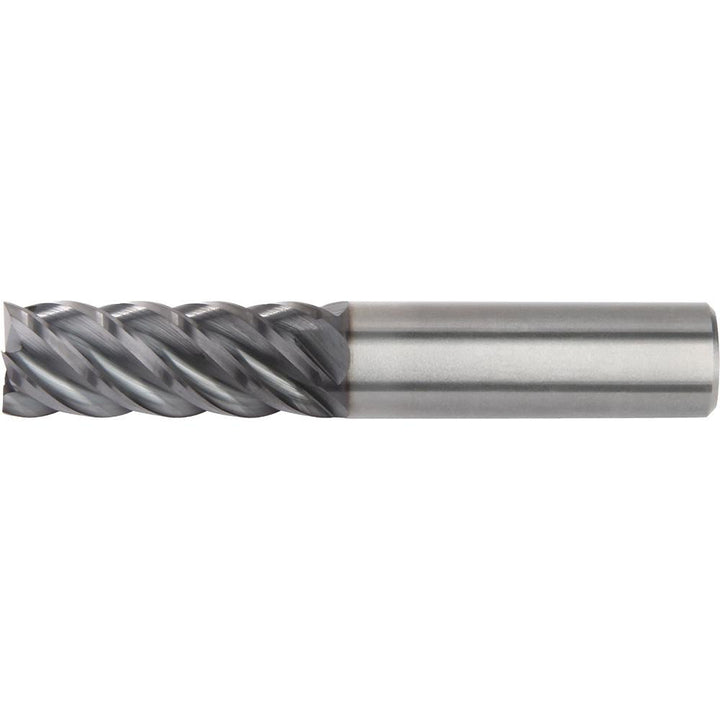

1/8in" 5-Flute Solid Carbide Square End Mill, WP15PE - Widia 5577187

MFR# 5577187Series 4C05 4C15

$30.94List $39.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8in

Flutes5

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5577187 is a 1/8in 5-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2in length of cut, 1-1/2in overall length. Series 4C05 4C15.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in1/2in

Length typeRegular

Material gradeWP15PE

Mill diameter in1/8in

Neck diameter0.1250in

Neck length0.5000

Number of flutes5

Overall length in1-1/2in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialStainless Steel; Cast Iron; Super Alloys & Titanium; Hard Material

Shank diameter in1/8in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
