Widia

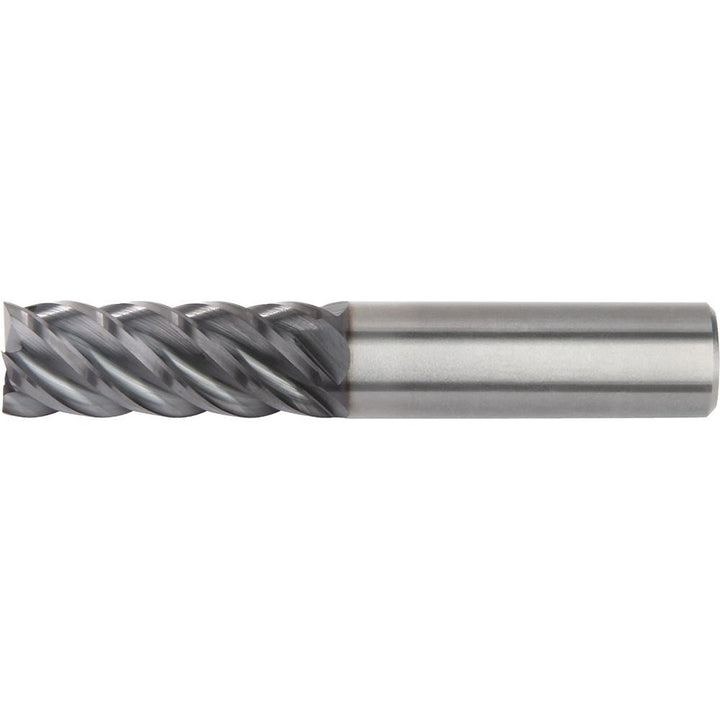

1/4" 5-Flute Solid Carbide Square End Mill, WP15PE - Widia 5577189

MFR# 5577189Series 4C05 4C15

$56.70List $72.73 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5577189 is a 1/4 5-flute Solid Carbide (WP15PE) square end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series 4C05 4C15.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWP15PE

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in3/4

Length typeRegular

Material gradeWP15PE

Mill diameter in1/4

Neck diameter0.25

Neck length0.7500

Number of flutes5

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialStainless Steel; Cast Iron; Super Alloys & Titanium; Hard Material

Shank diameter in1/4

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
