Widia

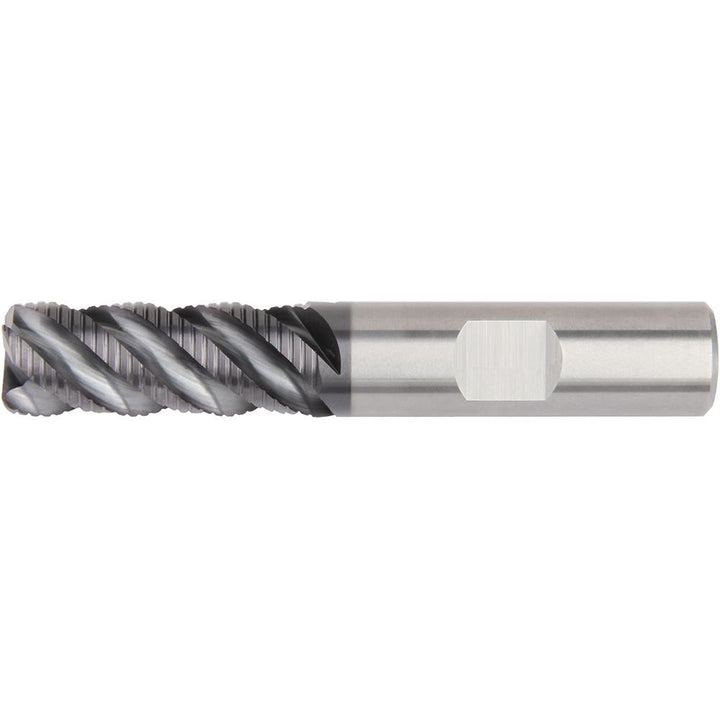

3/4" 4-Flute Solid Carbide Corner Radius End Mill, WP15PE - Widia 5577380

MFR# 5577380Series 4M0R

$350.64List $449.71 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingWP15PE

Description

The Widia 5577380 is a 3/4 4-flute Solid Carbide (WP15PE) corner radius end mill with a WP15PE finish for longer tool life. Suited for steel, stainless steel, hard material. 1-1/2 length of cut, 4 overall length. Series 4M0R.

Specifications

CentercuttingYes

ChipbreakerYes

Coating finishWP15PE

Coolant throughNo

Corner radius0.0500

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/2

Length typeRegular

Material applicationSteel; Stainless Steel; Cast Iron; High-Temperature Alloy; Hard Material

Material gradeWP15PE

Material removal typeRoughing

Mill diameter in3/4

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Hard Material

Reach length1.5000

Secondary workpiece materialCast Iron; High Temperature Alloy

Shank diameter in3/4

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
