Widia

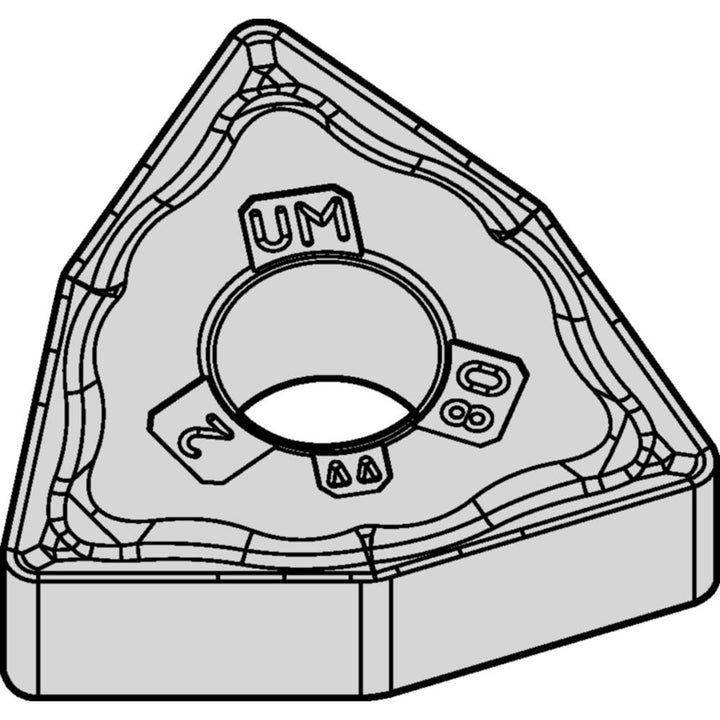

WNMG080408UM Carbide Insert, Grade WP25CT, TiN - Widia 5645270
MFR# 5645270ISO/ANSI# WNMG432UMSeries WNMG-UM
$9.27List $11.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWP25CT
MaterialCarbide
CoatingTiN
Description
The Widia 5645270 is a WNMG080408UM carbide indexable insert, grade WP25CT, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerUM
Clearance codeN
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberWNMG432UM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408UM
Length range0.6500 - 0.7000
Manufacturers catalog number5645270
Manufacturer gradeWP25CT
Material gradeP25
Maximum depth of cut0.2345
Multi use applicationTurning
Multi use toolNo
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle7
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
