Widia

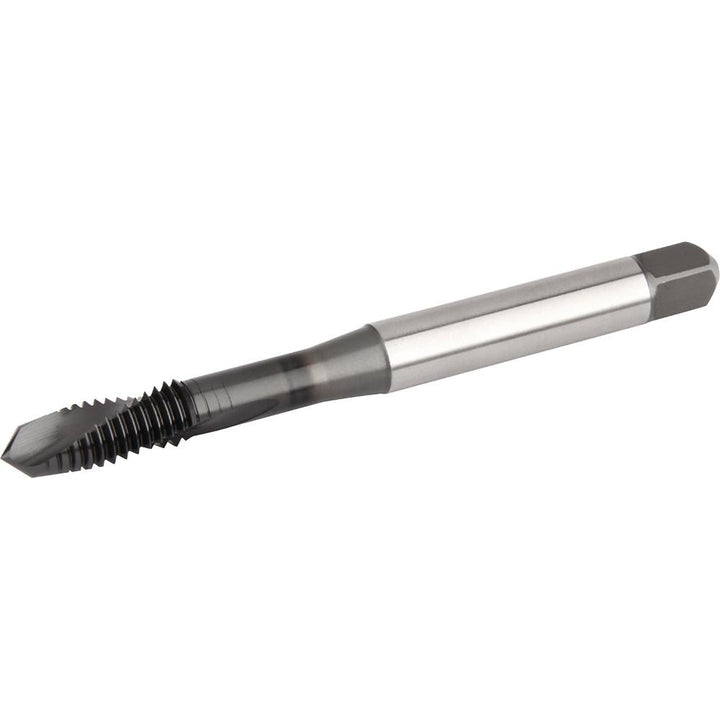

#6-32 UNC High-Speed Steel Tap, C - Widia 5690897
MFR# 5690897Series GT72
$17.59List $22.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#6-32
CoatingC
Description
The Widia 5690897 is a #6-32 UNC High-Speed Steel tap with a C finish. 2 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishC
Coolant throughNo
Flute directionLeft Hand
MaterialHigh-Speed Steel
Material applicationNon-Ferrous Metal
Material gradeWN44EG
Number of flutes2
Overall length2.2000
Shank diameter0.1410
Square size0.1080
Tapping depth0.7900
Threads per inch32
Thread directionRight Hand
Thread length0.3500
Thread limitH3
Thread pitch0.0313
Thread size in#6-32
Thread standardUNC
