Widia

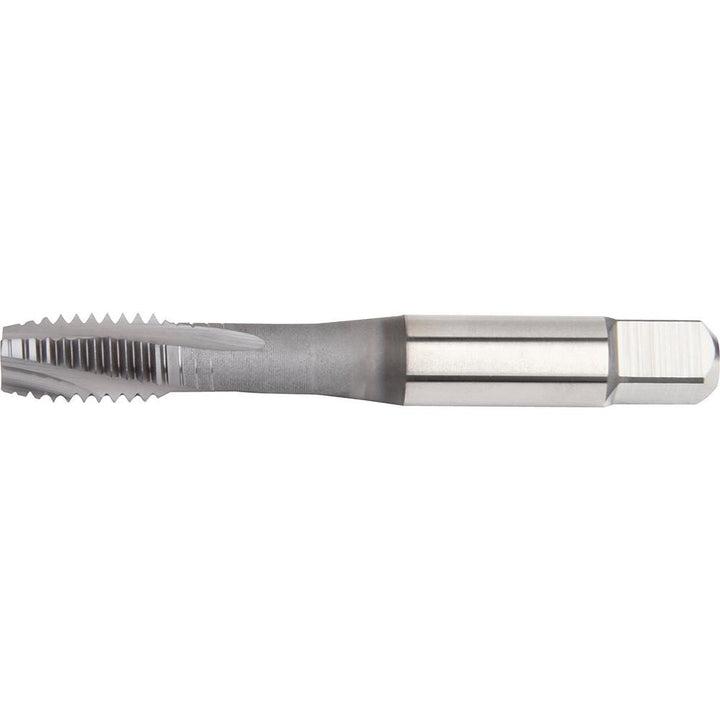

3/8-16 UNC Powdered Metal Tap, Oxide - Widia 5708227
MFR# 5708227Series GT92
$42.12List $45.34
Save 7%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingOxide
Description
The Widia 5708227 is a 3/8-16 UNC Powdered Metal tap with a Oxide finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
MaterialPowdered Metal
Material applicationHigh-Temperature Alloy
Material gradeWS39MG
Number of flutes3
Overall length2.9400
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.3810
Square size0.2840
Tapping depth1.2700
Threads per inch16
Thread directionRight Hand
Thread length0.6000
Thread limitH3
Thread pitch0.0625
Thread size in3/8-16
Thread standardUNC
