Widia

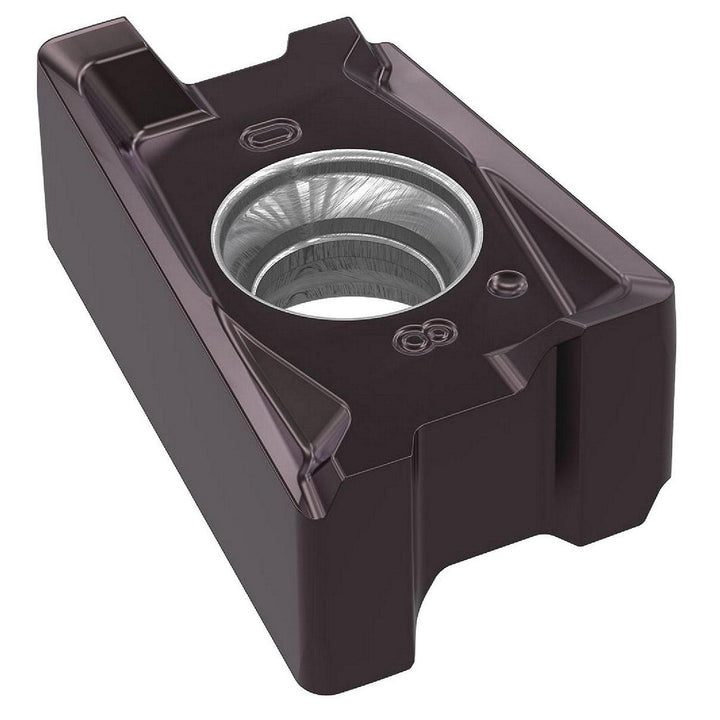

XNGU15T608SRMM Solid Carbide Insert, Grade WU35PM, AlTiN - Widia 5710529
MFR# 5710529ISO/ANSI# XNGU15T608SRMMCat# XNGU1502SRMMSeries VSM490-15
$29.33List $37.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeWU35PM
MaterialSolid Carbide
CoatingAlTiN
Description
The Widia 5710529 is a XNGU15T608SRMM solid carbide indexable insert, grade WU35PM, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeXNGU1502SRMM
Chip breakerMM
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM490
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code1502
Insert styleXNGU
Iso codeXNGU15T608SRMM
Length0.6380
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGU1502SRMM
Manufacturer gradeWU35PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.6020
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2710
Thickness range0.2500 to 0.3500
Width0.3940
