Widia

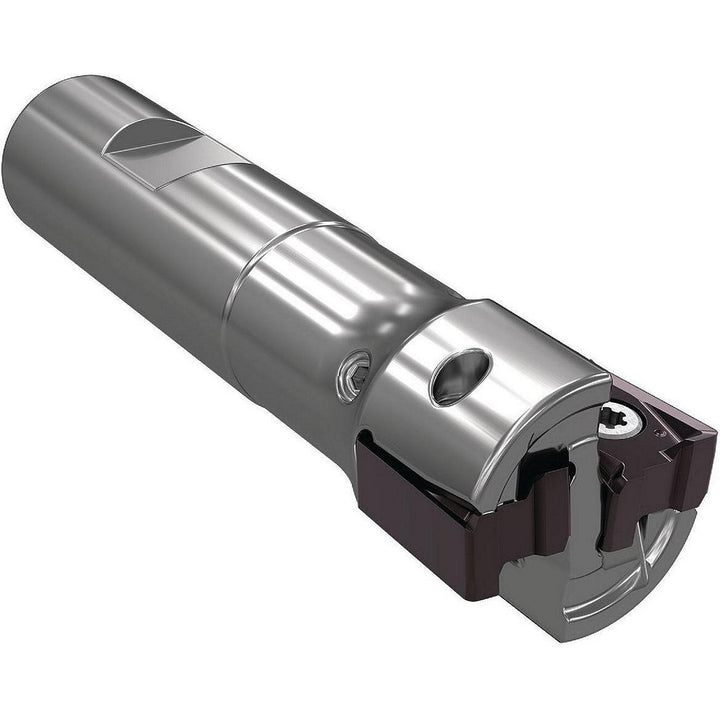

Indexable End Mills - Widia 5710590
MFR# 5710590Cat# VSM490D100Z02W100XN15Series VSM490-15
$415.25List $433.48
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Widia 5710590 indexable end mills. Suited for universal. Series VSM490-15.
Specifications
Complete insert compatibilityXNGU15..
Coolant hole diameter0.2362
Coolant throughYes
Cutter styleVSM
End mill typeShoulder Square End Mill
Flute typeSpiral
Hand of holderRight Hand
Head length in1-3/4
Insert compatibilityXNGU15..
Insert holding methodScrew
Iso numberVSM490D100Z02W100XN15
Lead angle90
Manufacturers catalog numberVSM490D100Z02W100XN15
Maximum depth of cut in1-3/4
Maximum ramping angle0
Maximum rpm26300.000
Multi use toolYes
Number of cutter inserts2
Number of flutes2
Primary workpiece materialUniversal
RakeNegative (Axial); Negative (Radial)
Rake angle-20.00 (Radial); -8.00 (Axial)
Shank diameter in1
Shank length2.2800
Shank taper sizeNone
Shank typeWeldon Flat
Tool applicationMilling; Pocketing; Slotting
Tool materialSteel
Tool performanceGeneral Purpose
Usable length1.7500
