Widia

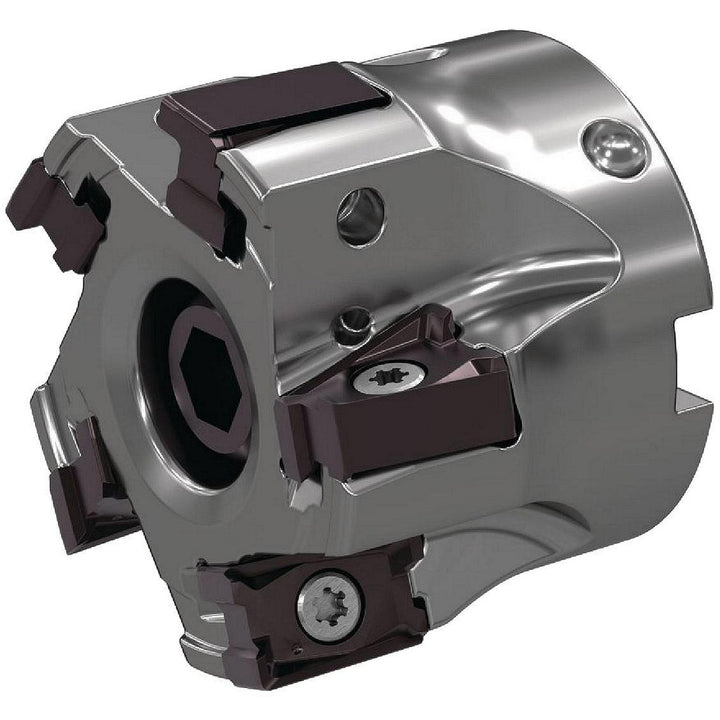

Indexable Milling Cutters - Widia 5710594
MFR# 5710594Cat# VSM490D200Z05S075XN15Series VSM490
$604.92List $642.65
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Widia 5710594 indexable milling cutters. Suited for universal. Series VSM490.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeXNGU15T6..
Complete insert compatibilityXNGU15T608SRMM
Coolant hole diameter0.0870
Coolant throughYes
Cutter styleVSM
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Lead angle90
Manufacturers catalog numberVSM490D200Z05S075XN15
Maximum body diameter1.9160
Maximum cutting diameter in2
Maximum depth of cut0.5910
Maximum ramping angle0
Minimum cutting diameter in2
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Primary workpiece materialUniversal
RakeNegative (Axial); Negative (Radial)
Rake angle-13.80
Toolholder materialSteel
Tool applicationMilling; Slotting
Tool performanceGeneral Purpose
