Widia

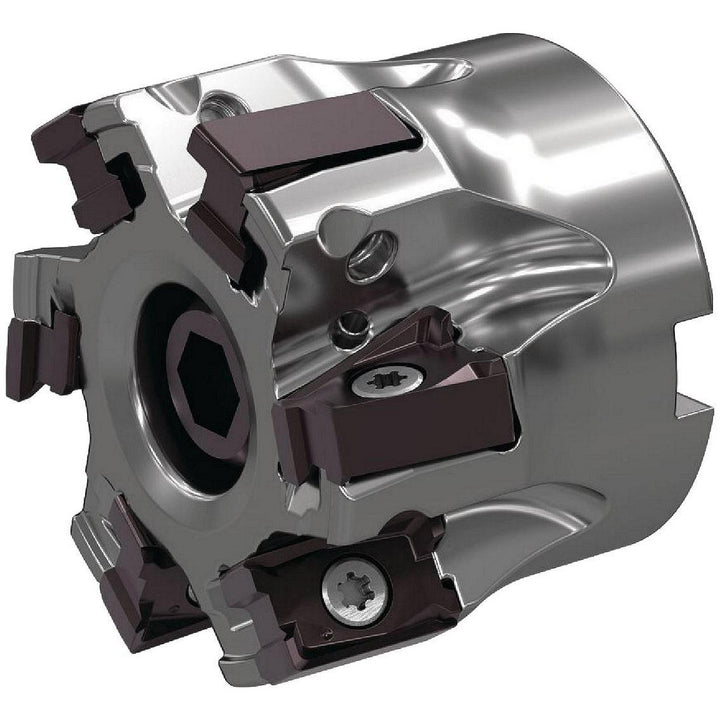

Indexable Milling Cutters - Widia 5710598
MFR# 5710598Cat# VSM490D300Z07S100XN15Series VSM490
$799.76List $849.64
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Widia 5710598 indexable milling cutters. Suited for universal. Series VSM490.
Specifications
Arbor hole diameter in1
Compatible insert size codeXNGU15T6..
Complete insert compatibilityXNGU15T608SRMM
Coolant hole diameter0.1180
Coolant throughYes
Cutter styleVSM
Cutting directionRight Hand
Hub diameter2.1902
Insert holding methodScrew
Lead angle90
Manufacturers catalog numberVSM490D300Z07S100XN15
Maximum body diameter2.8930
Maximum cutting diameter in3
Maximum depth of cut0.5910
Maximum ramping angle0
Minimum cutting diameter in3
Number of cutter inserts7
Number of flutes7
Overall height in1-3/4
Primary workpiece materialUniversal
RakeNegative (Axial); Negative (Radial)
Rake angle-13.68
Toolholder materialSteel
Tool applicationMilling; Slotting
Tool performanceGeneral Purpose
