Widia

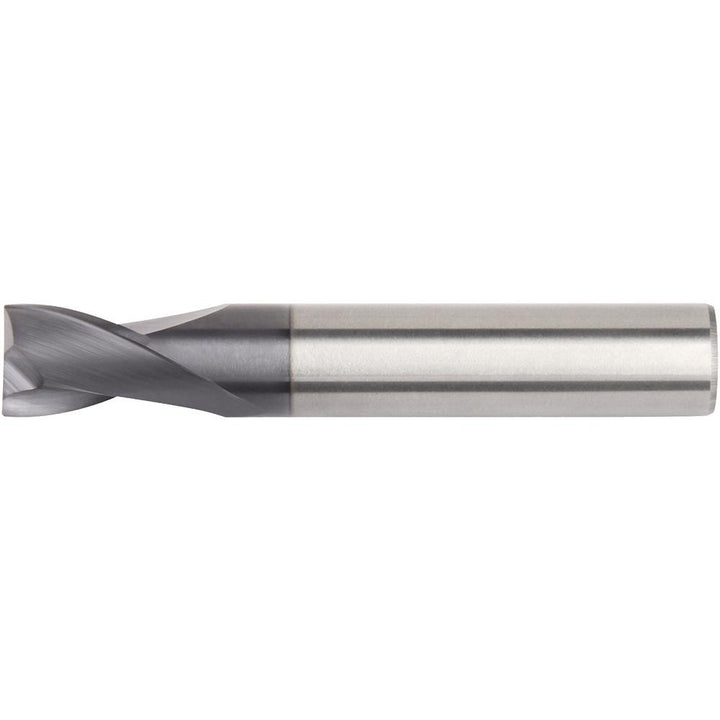

5/16" 2-Flute Solid Carbide Square End Mill, TiAlN - Widia 5872941
MFR# 5872941Series I2S
$23.84List $30.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes2
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5872941 is a 5/16 2-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1/2 length of cut, 2 overall length. Series I2S.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeTiAlN
Mill diameter in5/16
Neck diameter0.3125
Neck length0.5000
Number of flutes2
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel; High-Temp Alloy
Shank diameter in5/16
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
