Widia

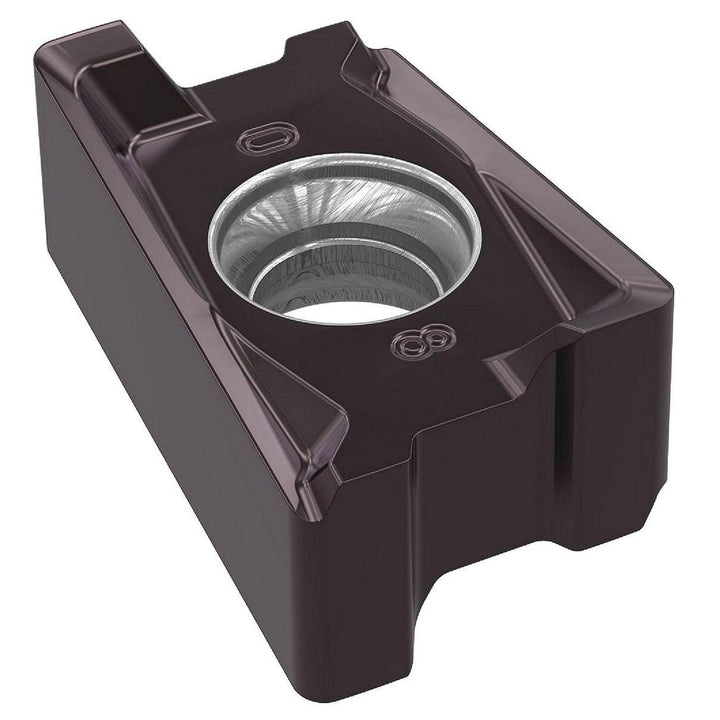

XNPU15T608SRMM Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 5873416
MFR# 5873416ISO/ANSI# XNPU15T608SRMMCat# XNPU1502SRMMSeries VSM490-15
$28.60List $36.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5873416 is a XNPU15T608SRMM solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeXNPU1502SRMM
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM490
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code1502
Insert styleXNPU
Iso codeXNPU15T608SRMM
Length0.6340
Length range0.6000 to 0.6500
Manufacturers catalog numberXNPU1502SRMM
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2710
Thickness range0.2500 to 0.3500
Width0.3940
