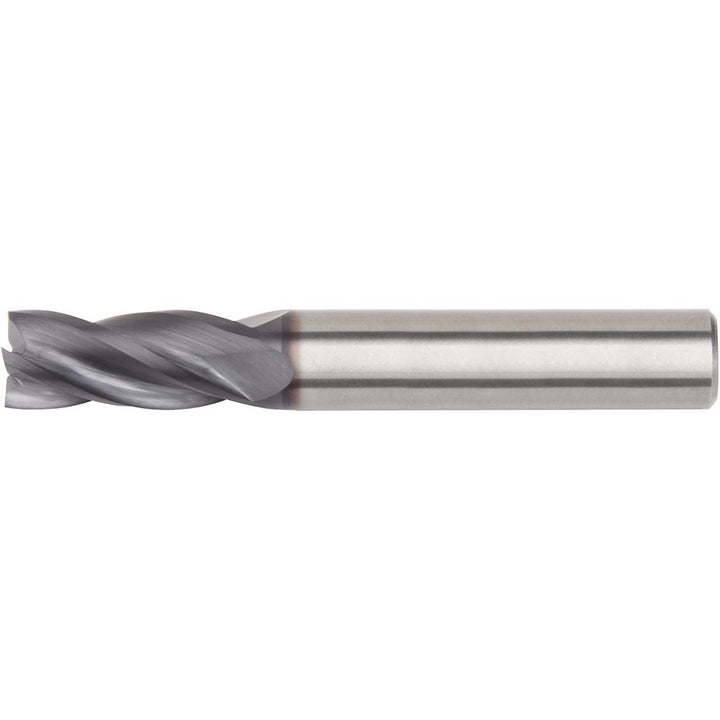

3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879136

Widia

3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879136

MFR# 5879136Series I4S

$19.84List $25.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Widia 5879136 is a 3/16 4-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 5/8 length of cut, 2 overall length. Series I4S.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeTiAlN
Mill diameter in3/16
Neck diameter0.1875
Neck length0.6250
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Super Alloys & Titanium; Hard Material
Shank diameter in3/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
