Widia

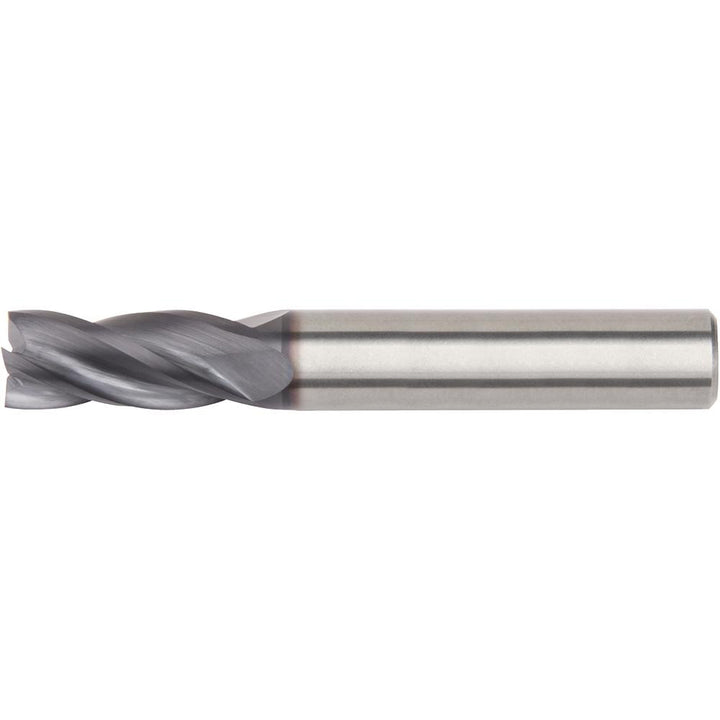

3/4" 4-Flute Solid Carbide Square End Mill, TiAlN - Widia 5879188
MFR# 5879188Series I4S
$209.15List $268.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 5879188 is a 3/4 4-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3 length of cut, 6 overall length. Series I4S.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in3
Length typeRegular
Material gradeTiAlN
Mill diameter in3/4
Neck diameter0.7500
Neck length3.0000
Number of flutes4
Overall length in6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel; High-Temp Alloy
Shank diameter in3/4
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
