Widia

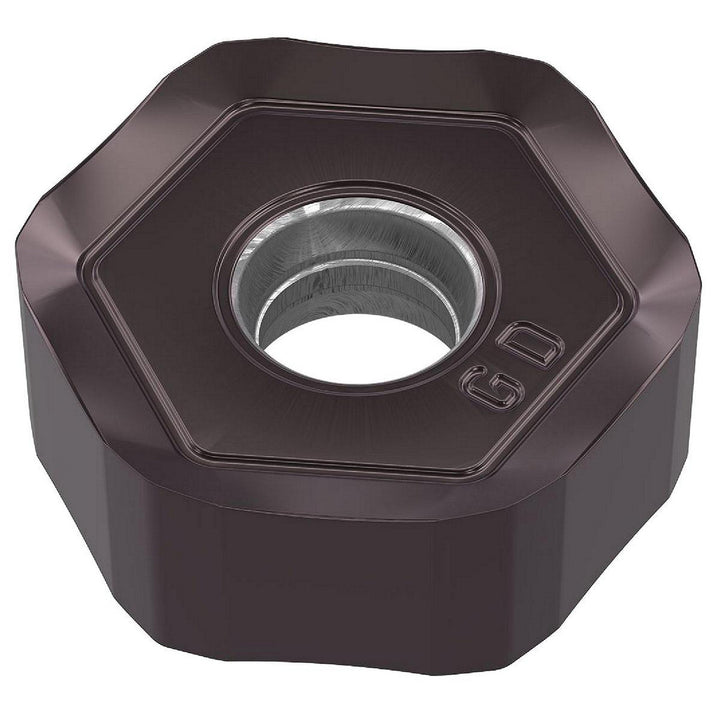

HNGJ0905ANSNGD Solid Carbide Insert, Grade WP35CM, Al2O3 - Widia 5895349
MFR# 5895349ISO/ANSI# HNGJ0905ANSNGDCat# HNGJ535ANSNGDSeries M1200
$34.05List $43.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeWP35CM
MaterialSolid Carbide
CoatingAl2O3
Description
The Widia 5895349 is a HNGJ0905ANSNGD solid carbide indexable insert, grade WP35CM, Al2O3 coated. Suited for steel, cast iron.
Specifications
Ansi codeHNGJ535ANSNGD
Chip breakerGD
Coating finishAl2O3
Coating processMTCVD
Corner radius in3/64
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code0905
Insert styleHNGJ
Iso codeHNGJ0905ANSNGD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNGJ535ANSNGD
Manufacturer gradeWP35CM
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
