Widia

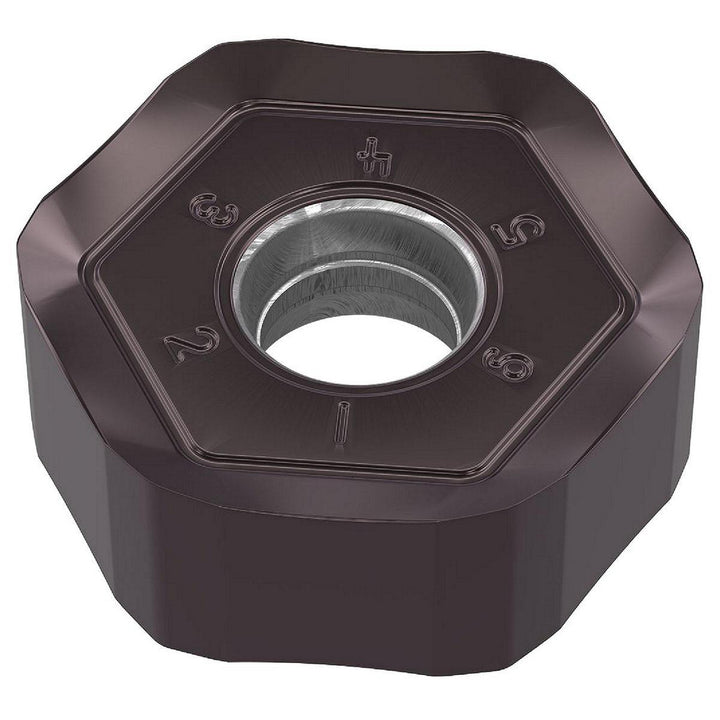

HNPJ0905ANSNGD Solid Carbide Insert, Grade WP25PM, AlTiN - Widia 5895374
MFR# 5895374ISO/ANSI# HNPJ0905ANSNGDCat# HNPJ535ANSNGDSeries M1200
$20.47List $25.80
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeWP25PM
MaterialSolid Carbide
CoatingAlTiN
Description
The Widia 5895374 is a HNPJ0905ANSNGD solid carbide indexable insert, grade WP25PM, AlTiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ535ANSNGD
Chip breakerGD
Coating finishAlTiN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code0905
Insert styleHNPJ
Iso codeHNPJ0905ANSNGD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ535ANSNGD
Manufacturer gradeWP25PM
Material applicationStainless Steel; Steel; Superalloys & Titanium; Hard Material; Cast Iron
Maximum depth of cut0.3380
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Secondary workpiece materialCast Iron; Hard Material
Single or double sided insertDouble
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
