Widia

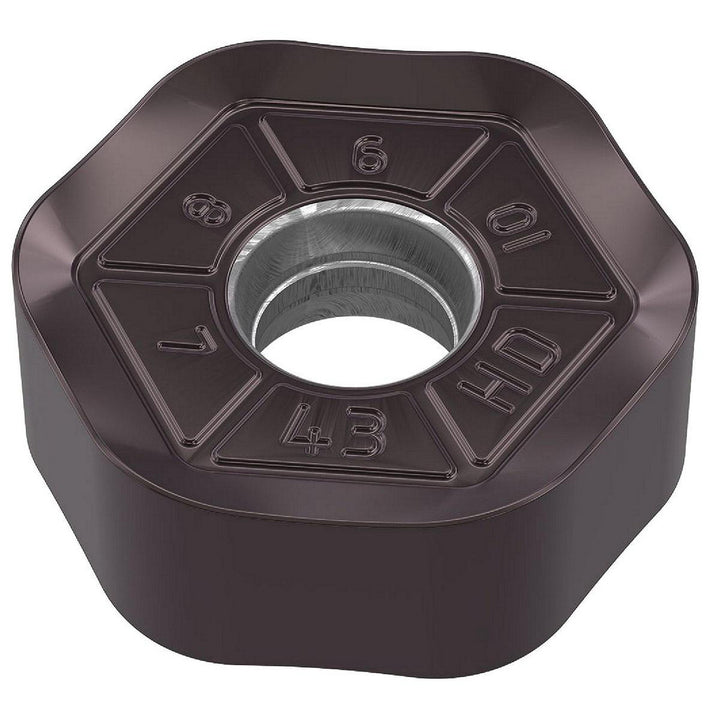

HNPJ090543ANSNHD Solid Carbide Insert, Grade WP35CM, Al2O3 - Widia 5895379
MFR# 5895379ISO/ANSI# HNPJ090543ANSNHDCat# HNPJ53511ANSNHDSeries M1200
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeWP35CM
MaterialSolid Carbide
CoatingAl2O3
Description
The Widia 5895379 is a HNPJ090543ANSNHD solid carbide indexable insert, grade WP35CM, Al2O3 coated. Suited for steel, cast iron.
Specifications
Ansi codeHNPJ53511ANSNHD
Chip breakerHD
Coating finishAl2O3
Coating processMTCVD
Corner radius in11/64
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code090543
Insert styleHNPJ
Iso codeHNPJ090543ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ53511ANSNHD
Manufacturer gradeWP35CM
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.3340
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2142
Thickness range0.2000 to 0.2200
Width in5/8
