Widia

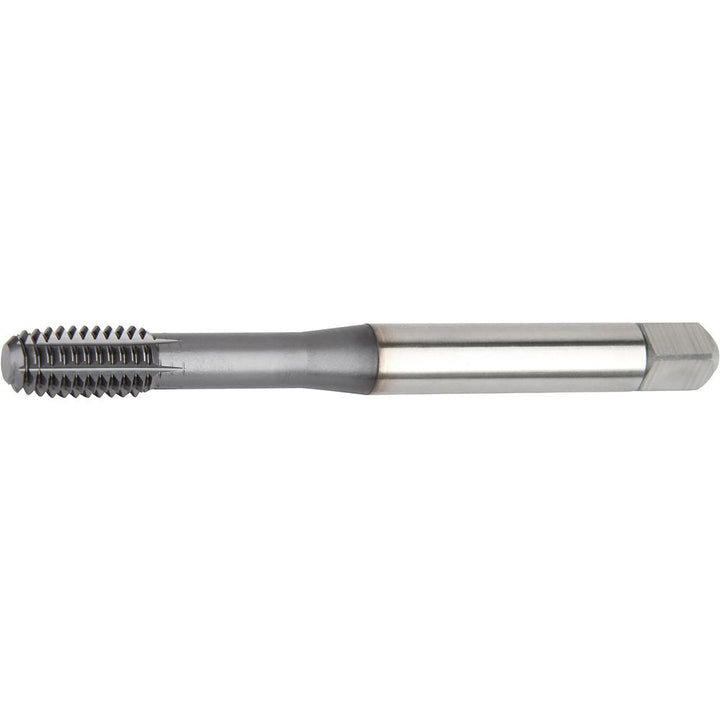

#6-32 UNC High-Speed Steel-E-PM Tap, TiCN - Widia 5945099
MFR# 5945099Series GT26
$52.44List $55.48
Save 5%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-32
CoatingTiCN
Description
The Widia 5945099 is a #6-32 UNC High-Speed Steel-E-PM tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Material gradeWU32MG
Oil grooves2
Overall length2.2047
Shank diameter0.1410
Square size0.1100
Tapping depth0.7874
Thread directionRight Hand
Thread length0.3937
Thread limitH3
Thread size in#6-32
Thread standardUNC
Trade nameVictory
