Widia

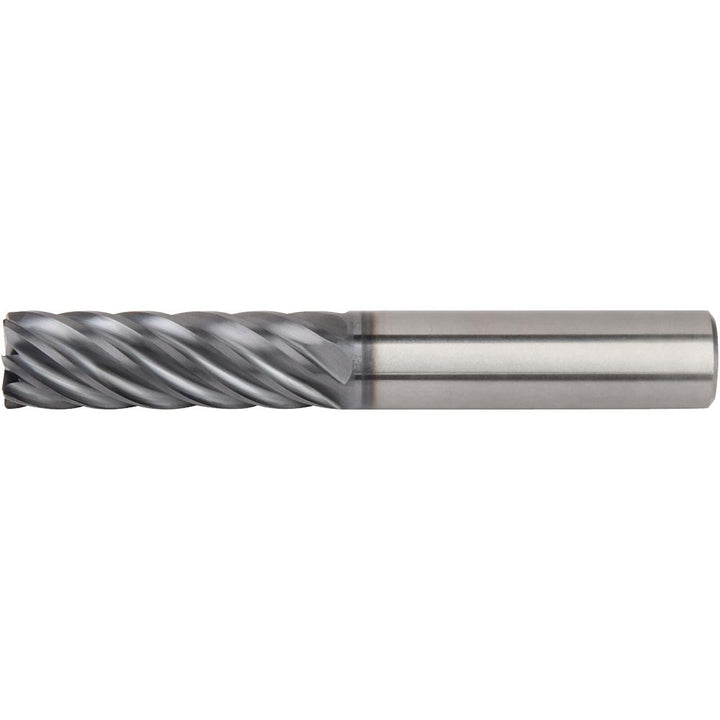

3/4" 7-Flute Solid Carbide Corner Radius End Mill, WS15PE - Widia 5971446

MFR# 5971446Series 7V1E

$462.38List $593.03 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes7

MaterialSolid Carbide

CoatingWS15PE

Description

The Widia 5971446 is a 3/4 7-flute Solid Carbide (WS15PE) corner radius end mill with a WS15PE finish for longer tool life. Suited for high temperature alloy. 2-1/4 length of cut, 5 overall length. Series 7V1E.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishWS15PE

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleMedium

Length of cut in2-1/4

Length typeLong

Material applicationSteel; Stainless Steel; High-Temperature Alloy; Hard Material

Material gradeWS15PE

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes7

Overall length in5

PitchClose

Primary workpiece materialHigh Temperature Alloy

Reach length in2-1/4

Secondary workpiece materialSteel; Stainless Steel; Hard Material

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
