Widia

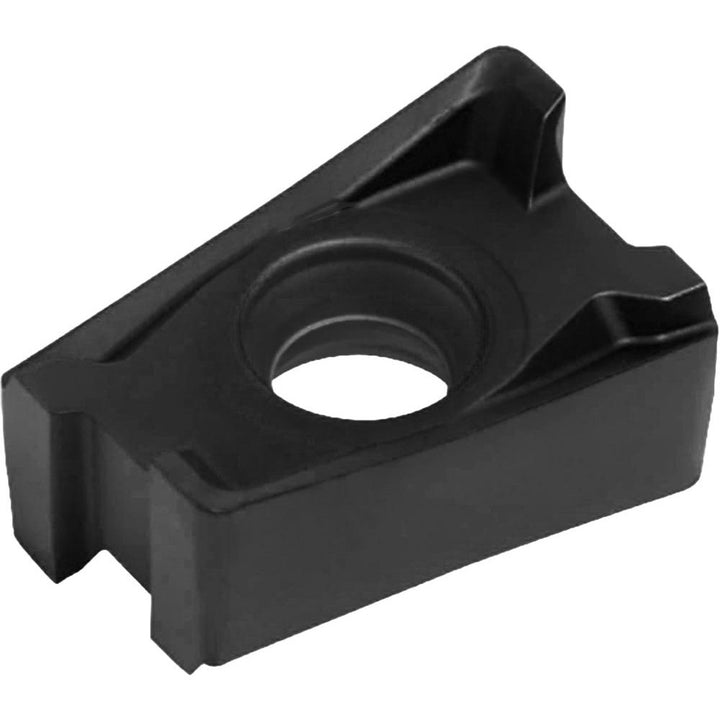

XNGU15T608SRMH Solid Carbide Insert, Grade WP35CM, Al2O3 - Widia 6003723
MFR# 6003723ISO/ANSI# XNGU15T608SRMHCat# XNGU1502SRMHSeries VSM490-15
$26.61List $33.54
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeWP35CM
MaterialSolid Carbide
CoatingAl2O3
Description
The Widia 6003723 is a XNGU15T608SRMH solid carbide indexable insert, grade WP35CM, Al2O3 coated. Suited for steel, cast iron.
Specifications
Ansi codeXNGU1502SRMH
Chip breakerMH
Coating finishAl2O3
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityVSM490
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree90
Inscribed circle0.3940
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size15
Insert size code1502
Insert styleXNGU
Iso codeXNGU15T608SRMH
Length0.6380
Length range0.6000 to 0.6500
Manufacturers catalog numberXNGU1502SRMH
Manufacturer gradeWP35CM
Material applicationSteel; Stainless Steel; Cast Iron
Maximum depth of cut0.6020
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0.00
Secondary workpiece materialStainless Steel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2710
Thickness range0.2500 to 0.3500
Width0.3940
