Widia

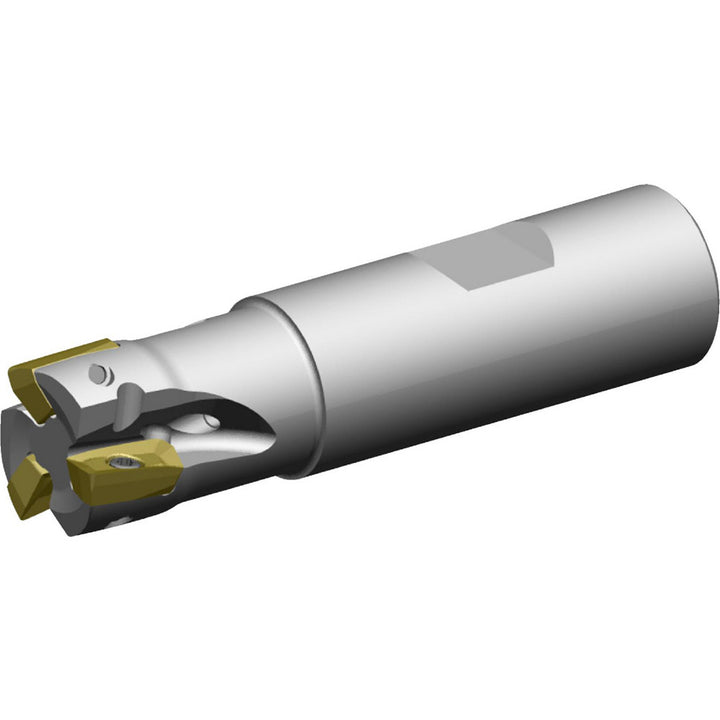

Indexable End Mills - Widia 6025663
MFR# 6025663Cat# VSM11D100Z03W075XD11Series VSM11
$347.58List $369.25
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Widia 6025663 indexable end mills. Suited for universal. Series VSM11.
Specifications
Complete insert compatibilityXD.T11..
Coolant hole diameter0.1970
Coolant throughYes
Cutter styleVSM
End mill typeShoulder Square End Mill
Flute typeSpiral
Hand of holderRight Hand
Head length1.2200
Insert compatibilityXD.T11..
Insert holding methodScrew
Iso numberVSM11D100Z03W075XD11
Lead angle90
Manufacturers catalog numberVSM11D100Z03W075XD11
Maximum depth of cut in29/64
Maximum ramping angle5.1
Maximum rpm29900.000
Multi use toolYes
Number of cutter inserts3
Number of flutes3
Primary workpiece materialUniversal
RakeNegative (Radial); Positive (Axial)
Rake angle-6.60 (Radial); 8.00 (Axial)
Shank diameter in3/4
Shank length2.0300
Shank taper sizeNone
Shank typeWeldon Flat
Tool applicationMilling; Pocketing; Ramping; Slotting
Tool materialSteel
Tool performanceGeneral Purpose
Usable length1.2200
