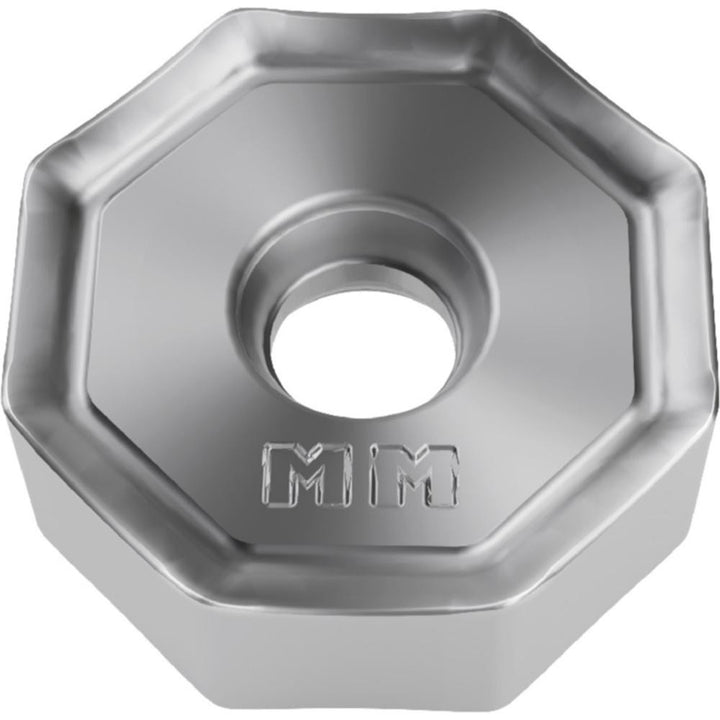

ONGX060512ANSNMM Solid Carbide Insert, Grade WK15CM, Al2O3 - Widia 6072424
MFR# 6072424ISO/ANSI# ONGX060512ANSNMMCat# ONGX060512ANSNMMSeries M1600
$29.07List $37.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeWK15CM
MaterialSolid Carbide
CoatingAl2O3
Description
The Widia 6072424 is a ONGX060512ANSNMM solid carbide indexable insert, grade WK15CM, Al2O3 coated. Suited for cast iron.
Specifications
Ansi codeONGX060512ANSNMM
Chip breakerMM
Coating finishAl2O3
Coating processMTCVD
Corner radius in3/64
Cutter series compatibilityM1600
Cutting edge styleChamfered; Honed
Hole diameter0.1831
Included angle degree135
Inscribed circle0.6646
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060512
Insert styleONGX
Iso codeONGX060512ANSNMM
Length0.6646
Length range0.6500 to 0.7000
Manufacturers catalog numberONGX060512ANSNMM
Manufacturer gradeWK15CM
Material applicationCast Iron
Maximum depth of cut0.2706
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron
RakeNegative
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2155
Thickness range0.2000 to 0.2200
Width0.6646
