Widia

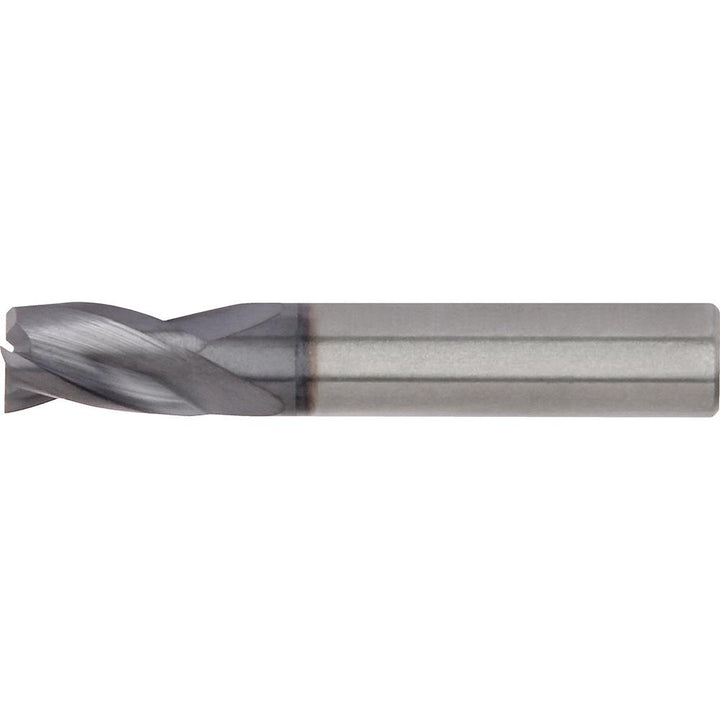

1/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Widia 6144144
MFR# 6144144Series I3S
$17.89List $22.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6144144 is a 1/8 3-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1/2 length of cut, 2-1/2 overall length. Series I3S.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in1/2
Length typeRegular
Material gradeTiAlN
Mill diameter in1/8
Neck diameter0.125
Neck length0.5000
Number of flutes3
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
