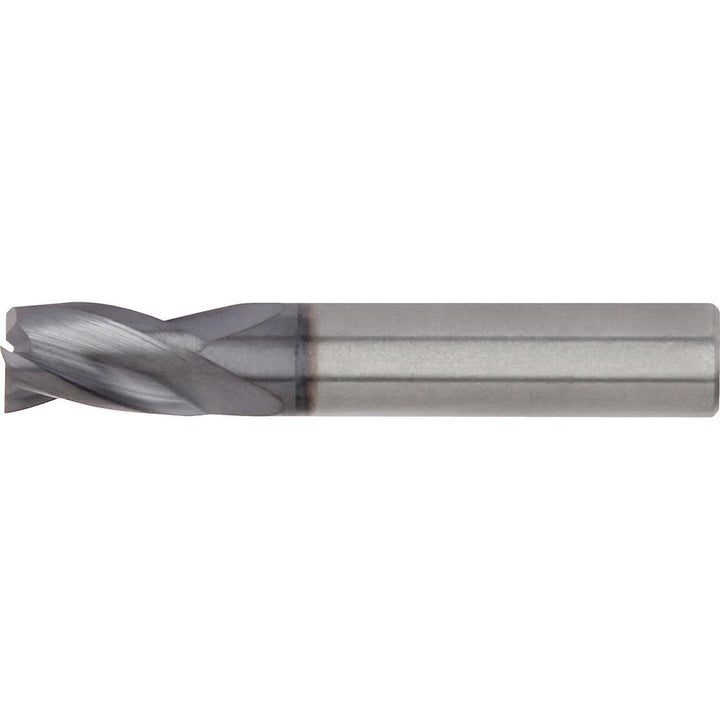

1/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Widia 6144145

Widia

1/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Widia 6144145

MFR# 6144145Series I3S

$20.63List $26.46 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingTiAlN

Description

The Widia 6144145 is a 1/8 3-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal. 5/8 length of cut, 3 overall length. Series I3S.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeTiAlN
Mill diameter in1/8
Neck diameter0.125
Neck length0.6250
Number of flutes3
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
