Widia

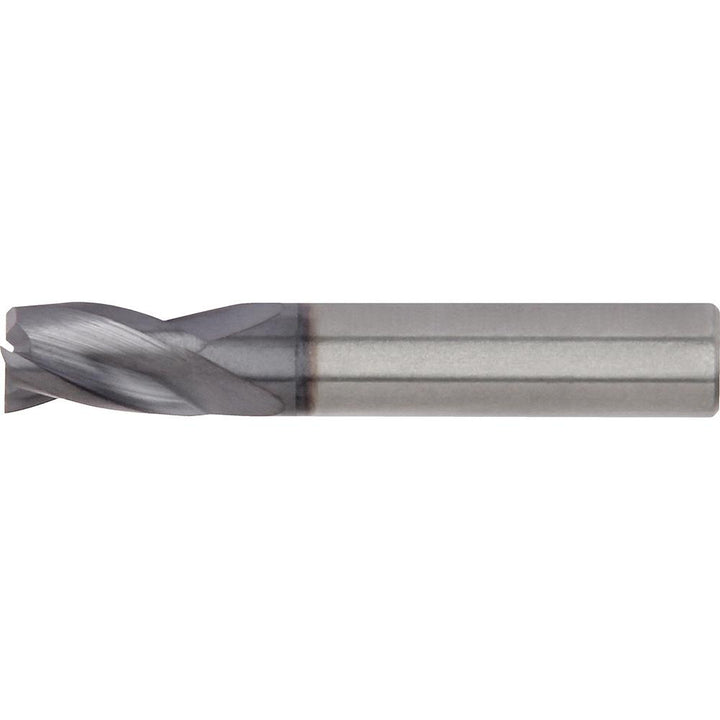

5/32" 3-Flute Solid Carbide Square End Mill - Widia 6144236

MFR# 6144236Series I3S

$12.59List $16.14 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Widia 6144236 is a 5/32 3-flute Solid Carbide (Uncoated) square end mill. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous. 9/16 length of cut, 2 overall length. Series I3S.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in9/16

Length typeRegular

Material gradeUncoated

Mill diameter in5/32

Neck diameter0.1875

Neck length0.5625

Number of flutes3

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous

Secondary workpiece materialCast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel

Shank diameter in3/16

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
