Widia

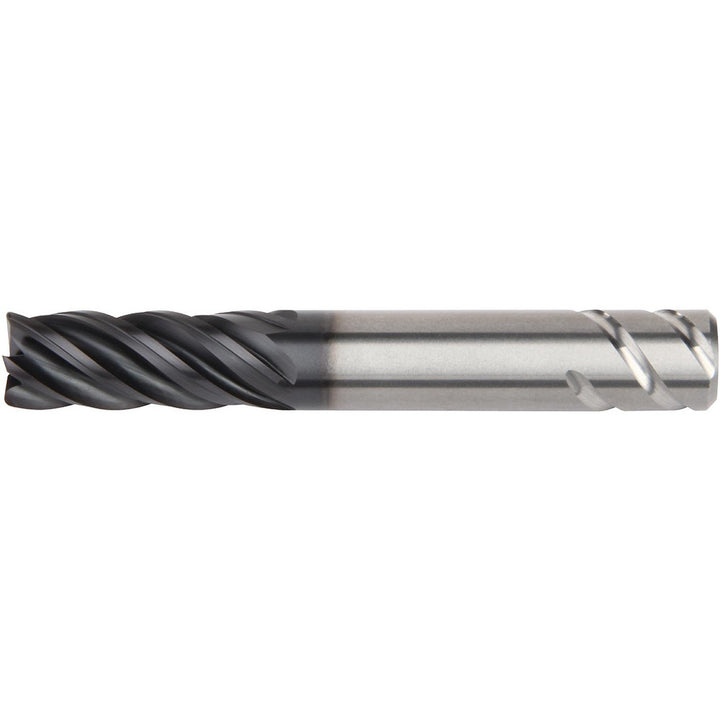

1-1/4" 5-Flute Solid Carbide Square End Mill, AlTiN - Widia 6146621

MFR# 6146621Series 5V0E

$1,051.02List $1,347.98 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1-1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Widia 6146621 is a 1-1/4 5-flute Solid Carbide (WS15PE) square end mill with a WS15PE finish for longer tool life. Suited for steel, stainless steel, high-temp alloy, hardened materials. 5 length of cut, 8 overall length. Series 5V0E.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in5

Length typeRegular

Material gradeWS15PE

Mill diameter in1-1/4

Number of flutes5

Overall length in8

Primary workpiece materialSteel; Stainless Steel; High-Temp Alloy; Hardened Materials

Secondary workpiece materialStainless Steel

Shank diameter in1-1/4

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
