Widia
M8x1.25 Metric Cobalt Tap, TiCN - Widia 6172486
MFR# 6172486Series VTSFT-TC
$43.69List $56.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description

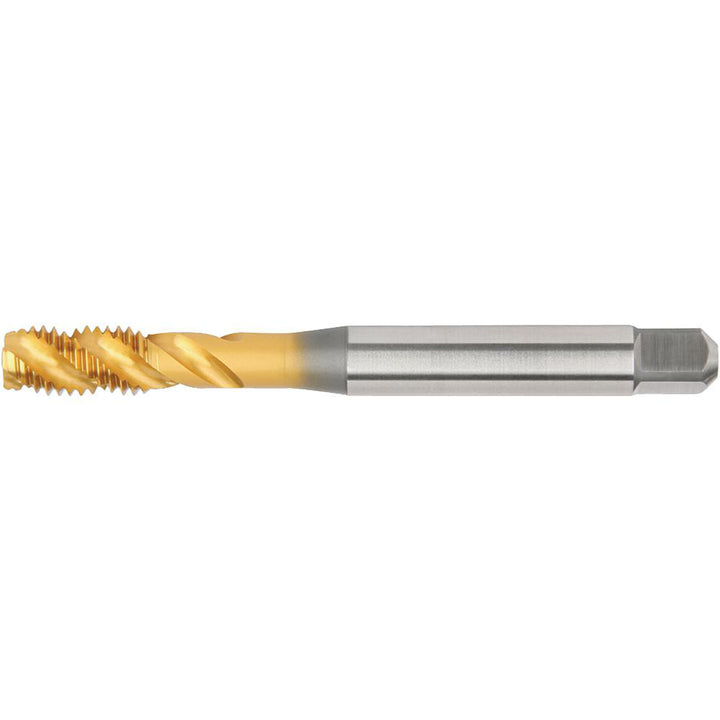

The Widia 6172486 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWU41EG
Number of flutes3
Overall length (mm)90.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)8.00
Square length (mm)9.00
Square size (mm)6.20
Threads per inch20
Thread directionRight Hand
Thread length (mm)13.00
Thread limitD5
Thread pitch (mm)1.25
Thread size (mm)M8x1.25
Thread standardMetric
