Widia

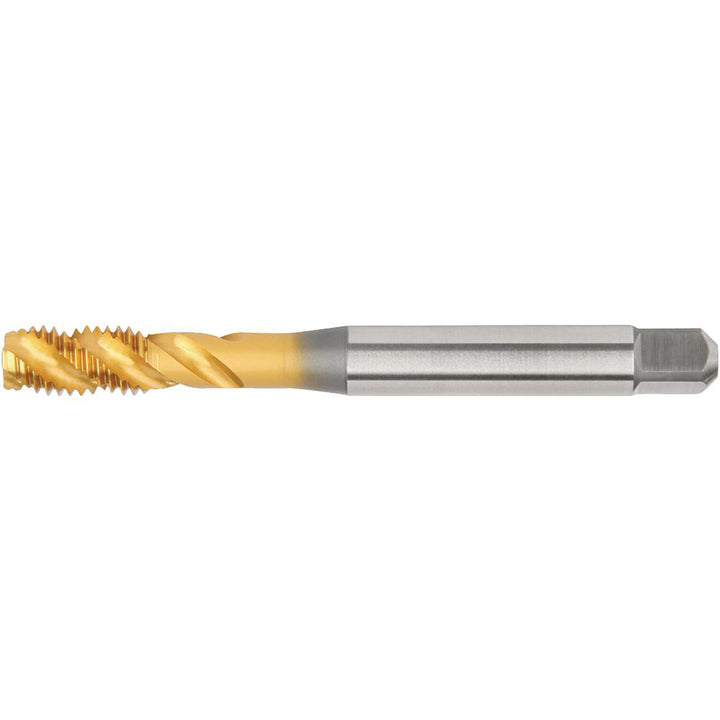

M10x1.5 Metric Cobalt Tap, TiCN - Widia 6172498
MFR# 6172498Series VTSFT-TC
$54.29List $69.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Widia 6172498 is a Metric Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Material gradeWU41EG
Number of flutes3
Overall length (mm)100.00
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)7.00
Square length (mm)8.50
Square size (mm)5.50
Threads per inch17
Thread directionRight Hand
Thread length (mm)15.00
Thread limitD6
Thread pitch (mm)1.50
Thread size (mm)M10x1.5
Thread standardMetric
