Widia

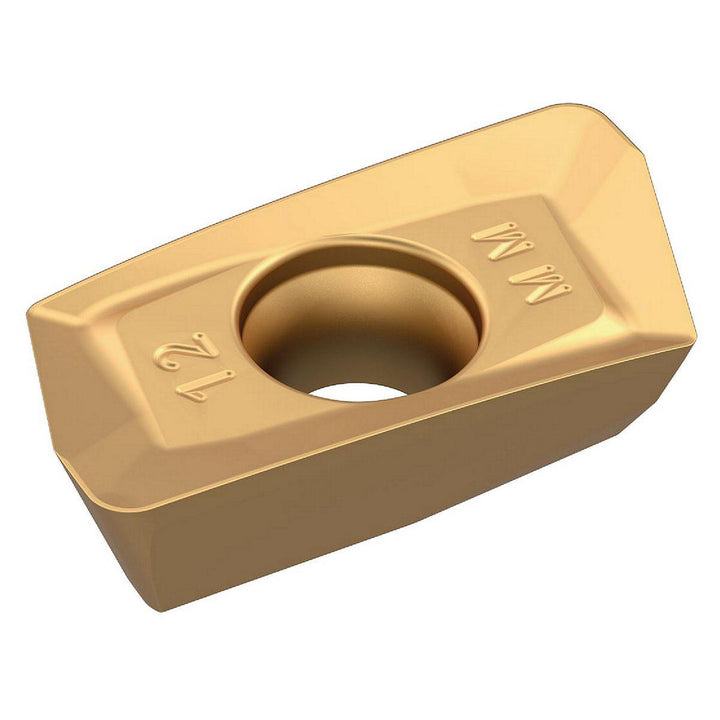

XDPT170412PESRMM Solid Carbide Insert, Grade WS40PM, TiAlN - Widia 6180213
MFR# 6180213ISO/ANSI# XDPT170412PESRMMCat# XDPT1703SRMMSeries VSM17
$22.24List $28.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWS40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6180213 is a XDPT170412PESRMM solid carbide indexable insert, grade WS40PM, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT1703SRMM
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityVSM17
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree75
Inscribed circle0.3780
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code1703
Insert styleXDPT
Iso codeXDPT170412PESRMM
Length0.7540
Length range0.7000 to 0.9000
Manufacturers catalog numberXDPT1703SRMM
Manufacturer gradeWS40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Non-Ferrous Metal
Maximum depth of cut0.6580
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1930
Thickness range0.1850 to 0.2000
Width0.3780
