Widia

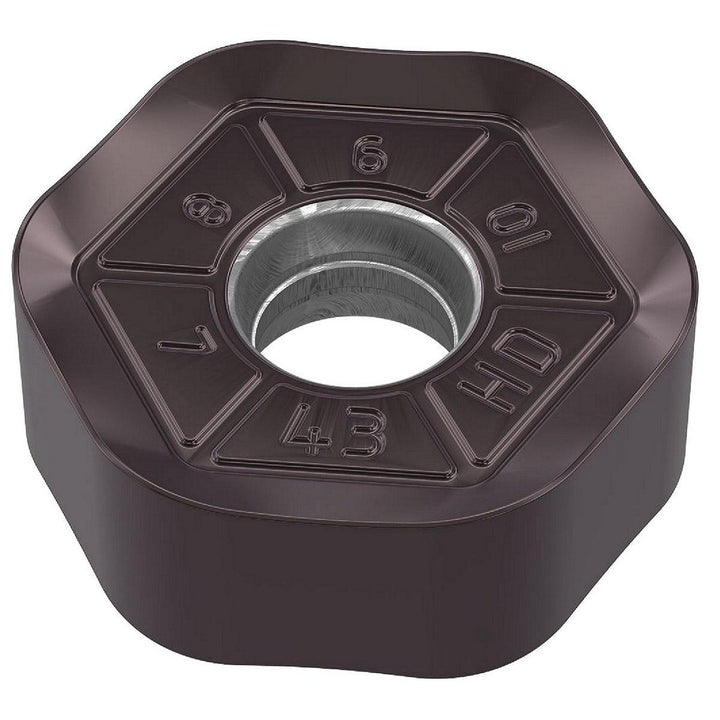

HNPJ0905ANSNHD Solid Carbide Insert, Grade WS40PM, TiAlN - Widia 6180279
MFR# 6180279ISO/ANSI# HNPJ0905ANSNHDCat# HNPJ535ANSNHDSeries M1200
$30.31List $38.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeHexagon
GradeWS40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6180279 is a HNPJ0905ANSNHD solid carbide indexable insert, grade WS40PM, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ535ANSNHD
Chip breakerHD
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityM1200
Cutting edge styleChamfered; Honed
Hole diameter0.1969
Included angle degree120
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size09
Insert size code0905
Insert styleHNPJ
Iso codeHNPJ0905ANSNHD
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberHNPJ535ANSNHD
Manufacturer gradeWS40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Non-Ferrous Metal
Maximum depth of cut0.3383
Multi use toolYes
Number of cutting edges12
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0.00
Secondary workpiece materialSteel
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2151
Thickness range0.2000 to 0.2200
Width in5/8
