Widia

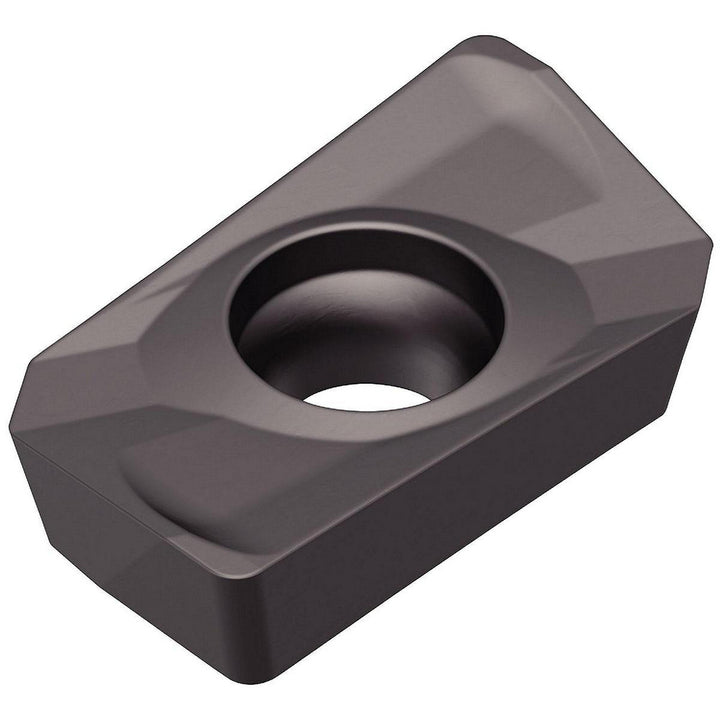

APMT1135PDR Solid Carbide Insert, Grade WU20PM, TiAlN - Widia 6196890
MFR# 6196890ISO/ANSI# APMT1135PDRCat# APMT1135PDRSeries APMT
$6.85List $8.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC15/64
ShapeParallelogram
GradeWU20PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6196890 is a APMT1135PDR solid carbide indexable insert, grade WU20PM, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPMT1135PDR
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityCIP
Cutting edge styleHoned
Hole diameter0.1083
Included angle degree90
Inscribed circle in15/64
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code1135
Insert styleAPMT
Iso codeAPMT1135PDR
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPMT1135PDR
Manufacturer gradeWU20PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4410
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Secondary workpiece materialCast Iron; Hard Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width in15/64
