Widia

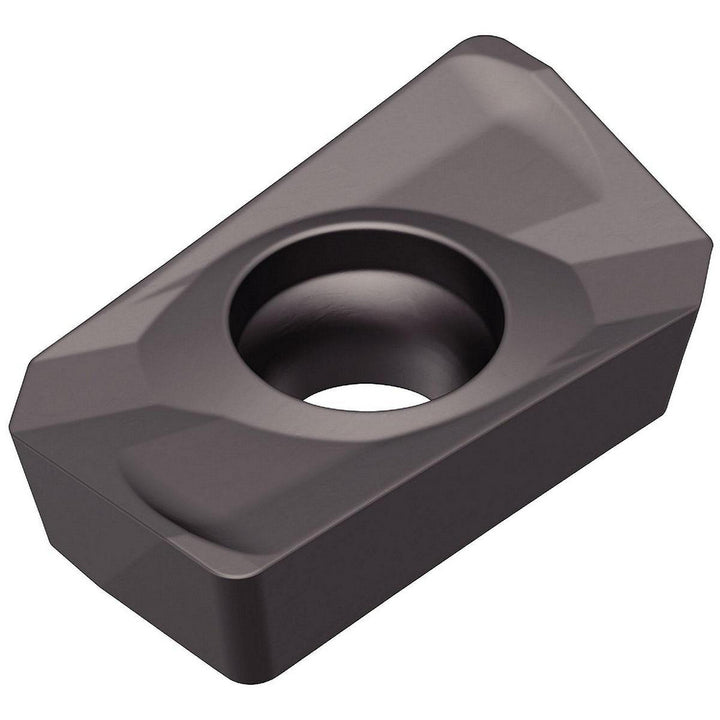

APMT1604PDR Solid Carbide Insert, Grade WU20PM, TiAlN - Widia 6196991
MFR# 6196991ISO/ANSI# APMT1604PDRCat# APMT1604PDRSeries APMT
$8.46List $10.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWU20PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6196991 is a APMT1604PDR solid carbide indexable insert, grade WU20PM, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPMT1604PDR
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityCIP
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle0.3638
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1604
Insert styleAPMT
Iso codeAPMT1604PDR
Length0.6689
Length of cut (mm)17.0000
Length range0.6500 to 0.7000
Manufacturers catalog numberAPMT1604PDR
Manufacturer gradeWU20PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.6689
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Secondary workpiece materialCast Iron; Hard Material
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3638
