Widia

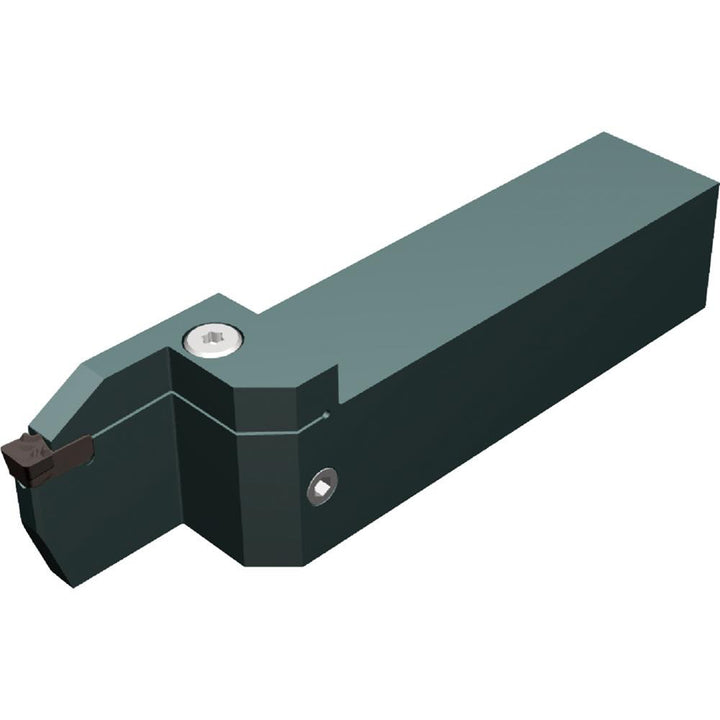

Indexable Grooving - Widia 6461925
MFR# 6461925Series WGC
$230.70List $245.09
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Widia 6461925 indexable grooving. Suited for universal. Series WGC.
Specifications
Back of bar to cutting edge1.0030
Compatible insert size code0300
Coolant throughYes
Cutting tool applicationGrooving; Cut-Off; Turning; Facing
Hand of holderRight Hand
Head height (mm)35.400
Head length1.8504
Insert compatibilityWG0300M03P02
Insert holding methodClamp
Insert seat size3.0
Internal or externalExternal
Maximum depth of cut1.0240
Maximum groove width0.1180
Minimum groove width0.1181
Overall length6.0000
Primary workpiece materialUniversal
Shank height in1
Shank length4.1500
Shank width diameter in1
Toolholder styleWGCSM
Tool materialSteel
