Widia

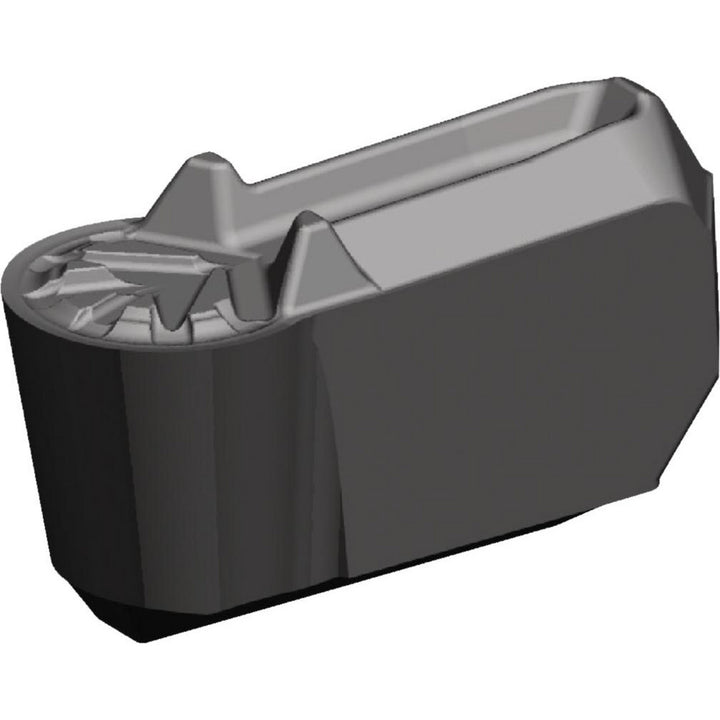

WR125I03P00PC Carbide Insert, Grade WU25PT, TiAlN - Widia 6470263
MFR# 6470263ISO/ANSI# WR125I03P00PCCat# WR125I03P00PCSeries WGC
$20.77List $26.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 6470263 is a WR125I03P00PC carbide indexable insert, grade WU25PT, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWR125I03P00PC
Chip breakerPC
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting width in1/8
Full radiusYes
Insert handNeutral
Insert height0.1580
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert size code3
Insert styleWGC
Insert thickness0.1580
Iso codeWR125I03P00PC
Lead angle6
Manufacturers catalog numberWR125I03P00PC
Manufacturer gradeWU25PT
Maximum depth of cut0.3760
Maximum groove width (mm)3.18
Minimum groove width (mm)3.18
Multi use toolNo
Number of cutting edges1
Overall length0.376
Overall width0.102
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle6
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
