Widia

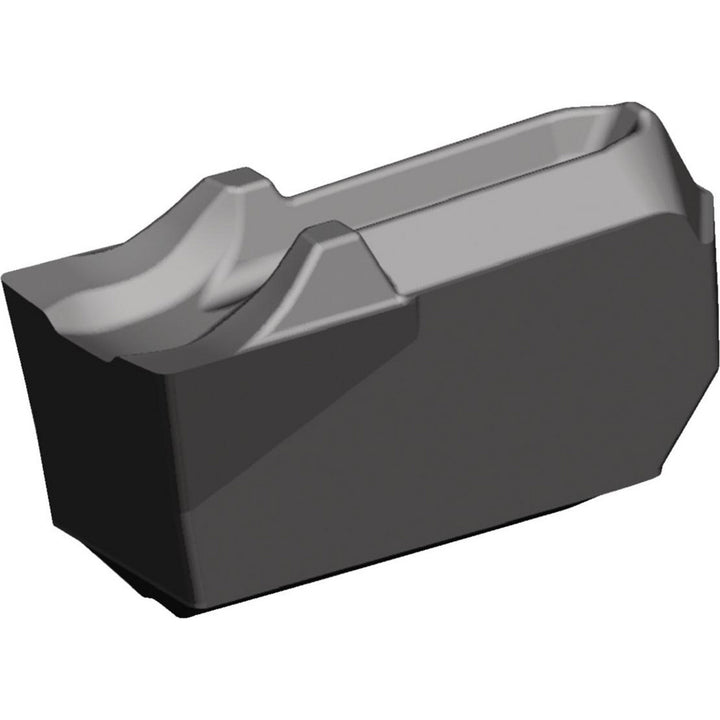

WC030M03N00F02 Carbide Insert, Grade WU25PT, AlTiN - Widia 6470561
MFR# 6470561ISO/ANSI# WC030M03N00F02Cat# WC030M03N00F02Series WGC
$18.88List $23.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingAlTiN
Description
The Widia 6470561 is a WC030M03N00F02 carbide indexable insert, grade WU25PT, AlTiN coated. Suited for super-alloys & titanium.
Specifications
Ansi codeWC030M03N00F02
ChipbreakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Cutting directionNeutral
Cutting height0.1580
Cutting tool applicationCut-Off
Cutting width0.1182
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size code030M
Insert styleWGC
Insert width0.1016
Iso codeWC030M03N00F02
Lead angle0.000
Lead angle directionNeutral
Manufacturers catalog numberWC030M03N00F02
Manufacturer gradeWU25PT
Maximum depth of cut0.3791
Multi use toolNo
Overall length0.3791
Overall width0.1182
Primary workpiece materialSuper-alloys & Titanium
Relief angle10.500
Secondary workpiece materialNon-Ferrous Metal; Cast Iron; Stainless Steel; Steel
Single or double endSingle
Width tolerance0.075 (mm)
