Widia

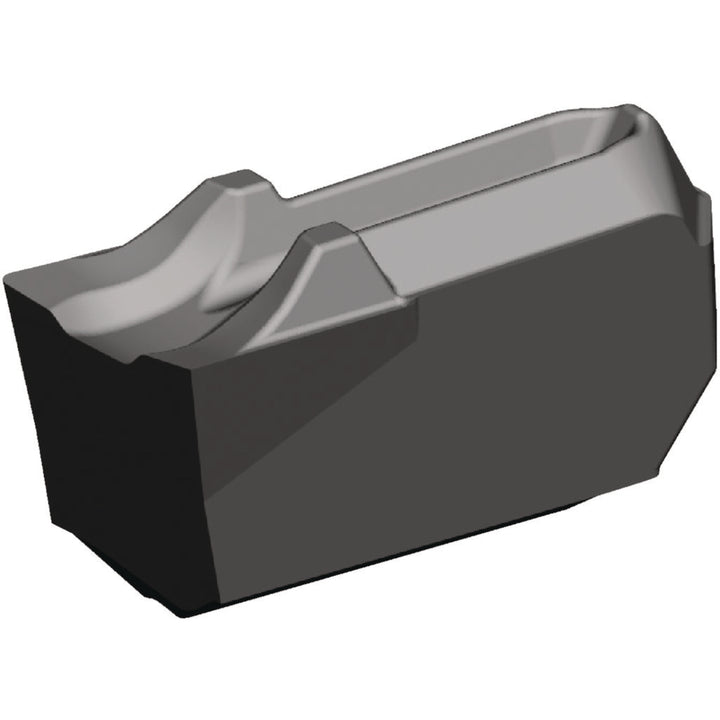

WC040M04R06F02 Carbide Insert, Grade WU25PT, AlTiN - Widia 6470565
MFR# 6470565ISO/ANSI# WC040M04R06F02Cat# WC040M04R06F02Series WGC
$16.20List $20.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingAlTiN
Description
The Widia 6470565 is a WC040M04R06F02 carbide indexable insert, grade WU25PT, AlTiN coated. Suited for super-alloys & titanium.
Specifications
Ansi codeWC040M04R06F02
ChipbreakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting directionRight Hand
Cutting height0.1740
Cutting tool applicationCut-Off
Cutting width in5/32
Insert handRight Hand
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size code040M
Insert styleWGC
Insert width0.1410
Iso codeWC040M04R06F02
Lead angle6.000
Lead angle directionRight Hand
Manufacturers catalog numberWC040M04R06F02
Manufacturer gradeWU25PT
Maximum depth of cut0.4010
Multi use toolNo
Overall length0.4010
Overall width0.1570
Primary workpiece materialSuper-alloys & Titanium
Relief angle10.500
Secondary workpiece materialNon-Ferrous Metal; Cast Iron; Stainless Steel; Steel
Single or double endSingle
Width tolerance0.075 (mm)
