Widia

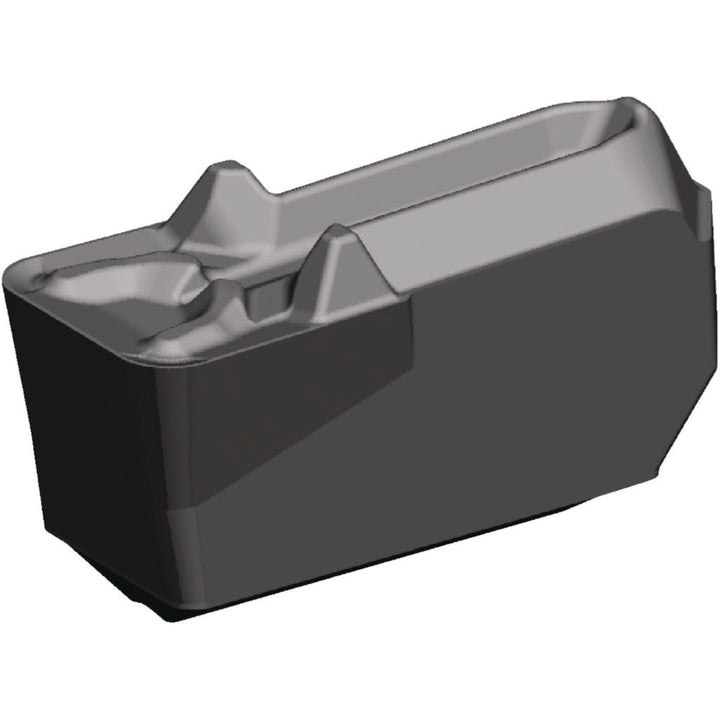

WG125I03U05PN Carbide Insert, Grade WU25PT, TiAlN - Widia 6470833
MFR# 6470833ISO/ANSI# WG125I03U05PNCat# WG125I03U05PNSeries WGC
$16.00List $20.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 6470833 is a WG125I03U05PN carbide indexable insert, grade WU25PT, TiAlN coated. Suited for super-alloys & titanium.
Specifications
Ansi codeWG125I03U05PN
Chip breakerPN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting height in1/16
Cutting width in1/8
For use withGrooving
Full radiusNo
Groove width (mm)3.18
Hole diameter0.0000
Insert handNeutral
Insert height0.1581
Insert holding methodClamp
Insert materialCarbide
Insert seat size3
Insert size3
Insert size code3
Insert styleWGC
Insert thickness0.1581
Iso codeWG125I03U05PN
Lead angle10.500
Manufacturers catalog numberWG125I03U05PN
Manufacturer gradeWU25PT
Maximum corner radius0.0079
Maximum depth of cut in1/16
Maximum groove width (mm)3.18
Minimum groove width (mm)3.18
Minimum insert width (mm)2.58
Multi use toolNo
Number of cutting edges1
Overall length0.3780
Overall width0.1020
Primary workpiece materialSuper-alloys & Titanium
RakePositive
Relief angle10.5
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
Single or double endSingle
StyleWGC Groove And Turn Insert
TypeWGC Groove And Turn Insert
