Widia

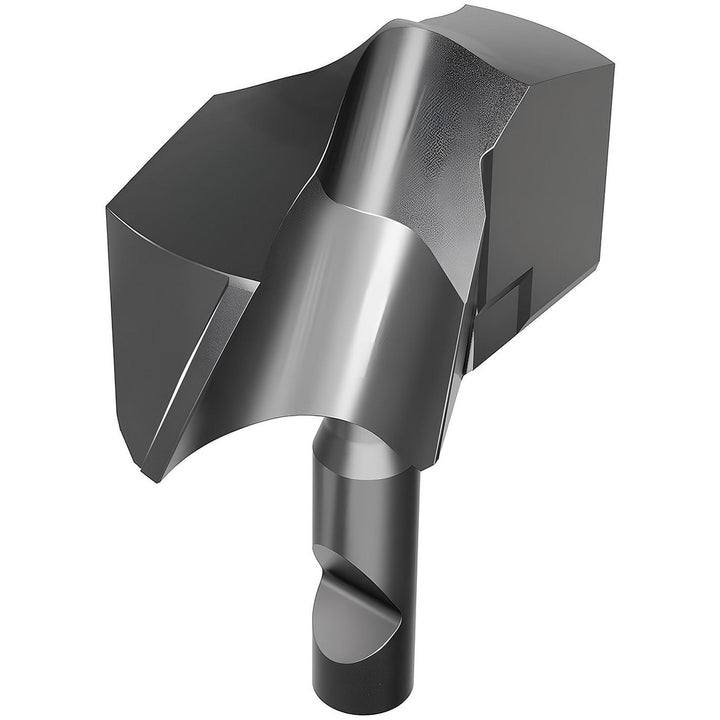

Carbide Insert, Grade WP40PD, TiAlN - Widia 6568871
MFR# 6568871Series TDMX
$219.06List $232.72
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeWP40PD
CoatingTiAlN
Description
The Widia 6568871 is a carbide indexable insert, grade WP40PD, TiAlN coated. Suited for steel, stainless steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter (mm)27.00
DrillingStacked Plates; 38513
Drill point angle140
Flute length (mm)13.00
Flute typeHelical
Functional length0.5315
Height (mm)19.00
Included angle degree140
Insert geometryPKM
Insert holding methodClamp
Insert seat sizeL
Iso numberTDMX27000PKM
Manufacturer gradeWP40PD
Material grade11% Cobalt
Number of flutes2
Overall length projection0.7398
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialStainless Steel
Spiral typeRegular Spiral
StyleTDMX
Tip materialSolid Carbide
