Widia

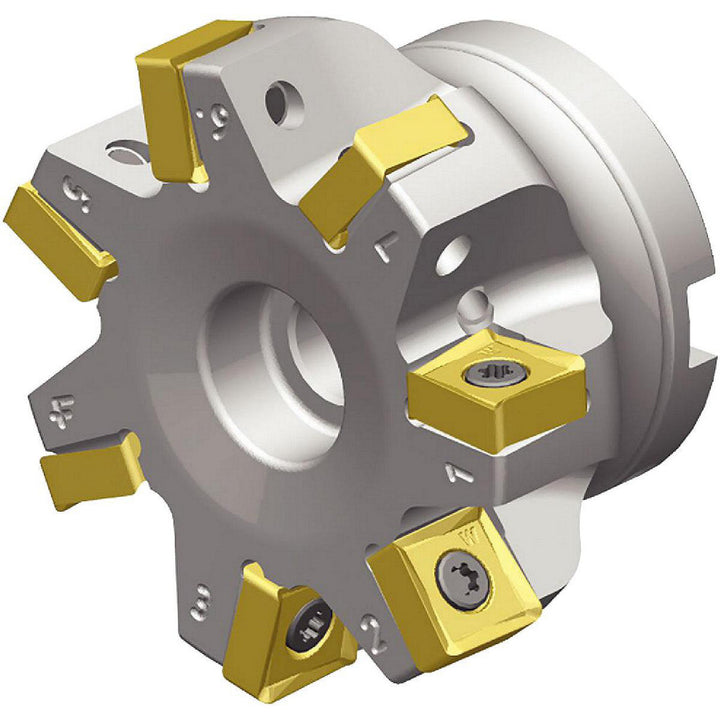

Indexable Milling Cutters - Widia 6596132
MFR# 6596132Cat# VSM890D200Z05S075SN12Series VSM890
$590.23List $627.05
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Widia 6596132 indexable milling cutters. Suited for universal. Series VSM890.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSNHX1204..
Complete insert compatibilitySNHX120408PNERMM
Coolant hole diameter0.1181
Coolant throughYes
Cutter styleVSM
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Lead angle90
Manufacturers catalog numberVSM890D200Z05S075SN12
Maximum body diameter1.9028
Maximum cutting diameter in2
Maximum depth of cut0.3872
Maximum ramping angle0
Minimum cutting diameter in2
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Primary workpiece materialUniversal
RakeNegative (Radial); Positive (Axial)
Rake angle-12.90
Toolholder materialSteel
Tool applicationMilling; Slotting
Tool performanceGeneral Purpose
