Widia

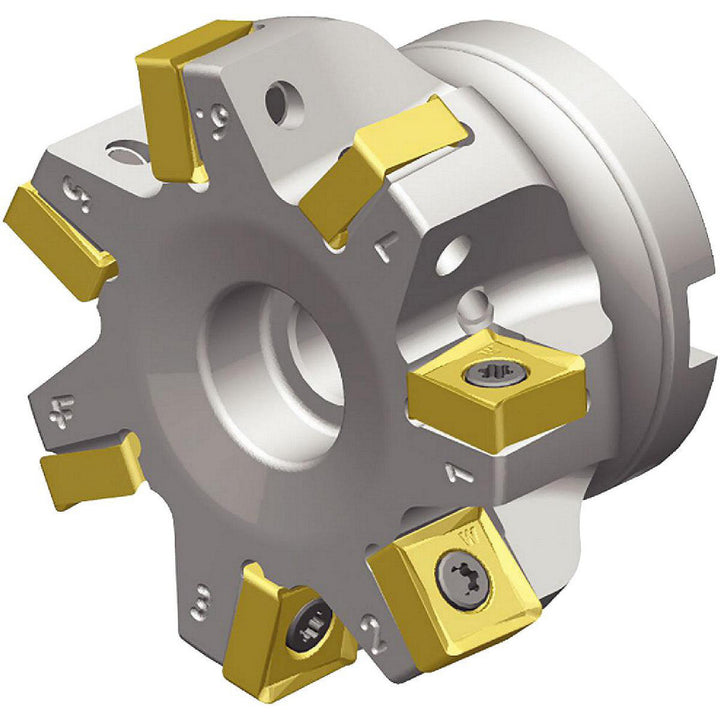

Indexable Milling Cutters - Widia 6596133
MFR# 6596133Cat# VSM890D250Z05S075SN12Series VSM890
$629.72List $668.99
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Widia 6596133 indexable milling cutters. Suited for universal. Series VSM890.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeSNHX1204..
Complete insert compatibilitySNHX120408PNERMM
Coolant hole diameter0.1181
Coolant throughYes
Cutter styleVSM
Cutting directionRight Hand
Hub diameter in1-3/4
Insert holding methodScrew
Lead angle90
Manufacturers catalog numberVSM890D250Z05S075SN12
Maximum body diameter2.3893
Maximum cutting diameter in2-1/2
Maximum depth of cut0.3872
Maximum ramping angle0
Minimum cutting diameter in2-1/2
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Primary workpiece materialUniversal
RakeNegative (Radial); Positive (Axial)
Rake angle-12.90
Toolholder materialSteel
Tool applicationMilling; Slotting
Tool performanceGeneral Purpose
