Widia

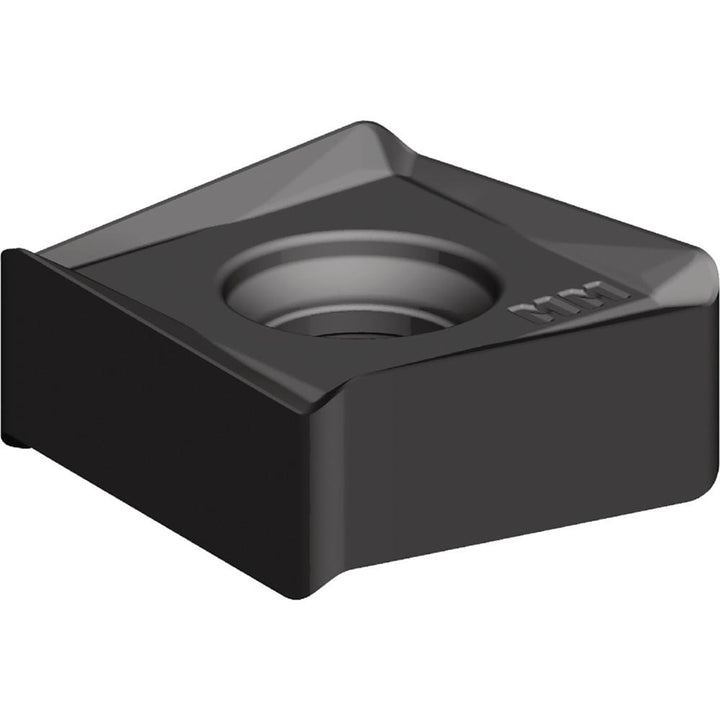

SNHX120408PNSRMM Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 6596432
MFR# 6596432ISO/ANSI# SNHX120408PNSRMMCat# SNHX1202PNSRMMSeries VSM890-12
$36.20List $45.63
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6596432 is a SNHX120408PNSRMM solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeSNHX1202PNSRMM
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityVSM890
Cutting edge styleChamfered; Honed
Hole diameter0.1870
Included angle degree90
Inscribed circle0.4724
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1202
Insert styleSNHX
Iso codeSNHX120408PNSRMM
Length0.4724
Length of cut (mm)12.0000
Length range0.4500 to 0.5000
Manufacturers catalog numberSNHX1202PNSRMM
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1813
Thickness range0.1750 to 0.1850
Width0.4724
