Widia

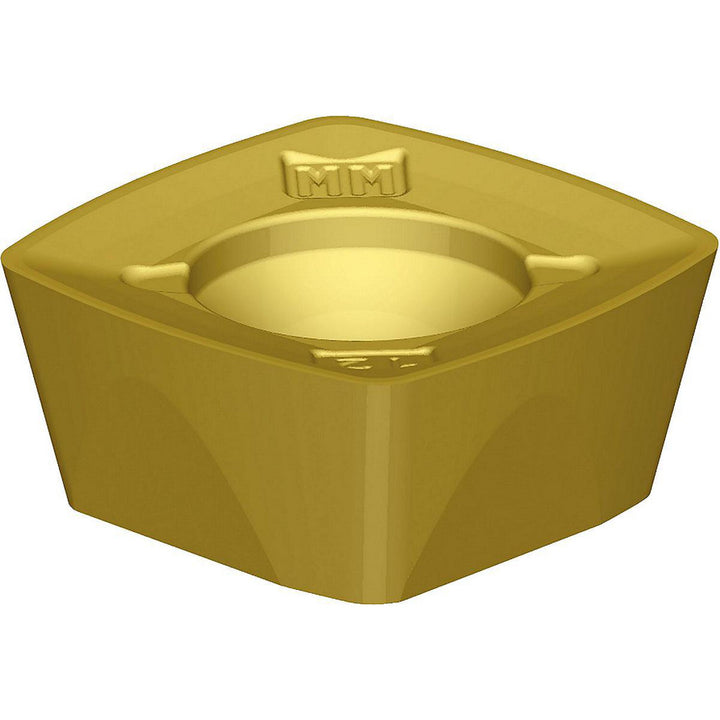

XDPT120512ERMM Solid Carbide Insert, Grade WS40PM, TiAlN - Widia 6596439
MFR# 6596439ISO/ANSI# XDPT120512ERMMCat# XDPT120512ERMMSeries VXF
$21.87List $28.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeWS40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6596439 is a XDPT120512ERMM solid carbide indexable insert, grade WS40PM, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeXDPT120512ERMM
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityVXF
Cutting edge styleHoned
Hole diameter0.2126
Included angle degree90
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120512
Insert styleXDPT
Iso codeXDPT120512ERMM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT120512ERMM
Manufacturer gradeWS40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Non-Ferrous Metal
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle12.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
