Widia

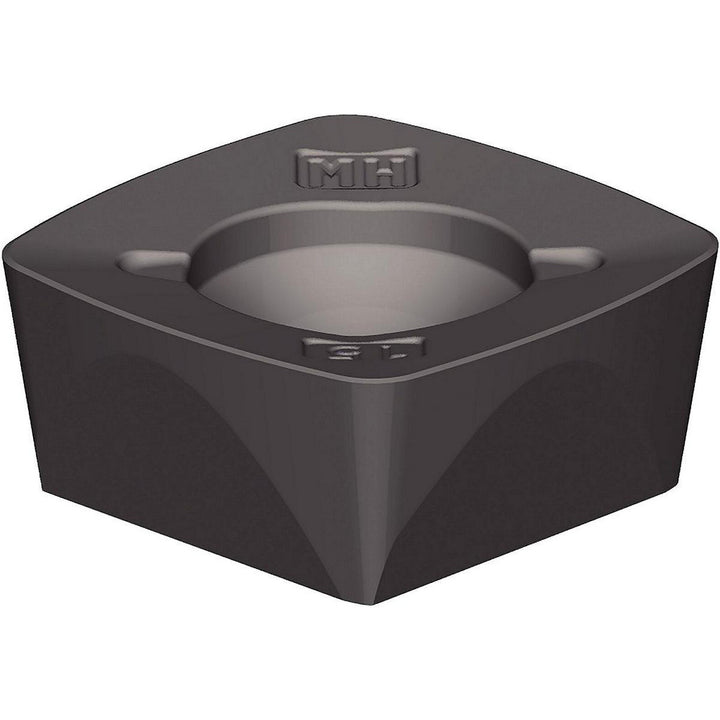

XDPT120515SRMH Solid Carbide Insert, Grade WP40PM, TiAlN - Widia 6596440
MFR# 6596440ISO/ANSI# XDPT120515SRMHCat# XDPT120515SRMHSeries VXF
$17.13List $21.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeWP40PM
MaterialSolid Carbide
CoatingTiAlN
Description
The Widia 6596440 is a XDPT120515SRMH solid carbide indexable insert, grade WP40PM, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeXDPT120515SRMH
Chip breakerMH
Coating finishTiAlN
Coating processPVD
Corner radius0.0586
Cutter series compatibilityVXF
Cutting edge styleChamfered; Honed
Hole diameter0.2126
Included angle degree90
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleXDPT
Iso codeXDPT120515SRMH
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberXDPT120515SRMH
Manufacturer gradeWP40PM
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle9.00
Secondary workpiece materialSuperalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in1/2
