Widia
DCMT11T308 Carbide Insert, Grade WK15CT, TiCN - Widia 6671913
MFR# 6671913ISO/ANSI# DCMT3252Series DCMT
$10.88List $13.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRhombic
GradeWK15CT
MaterialCarbide
CoatingTiCN
Description

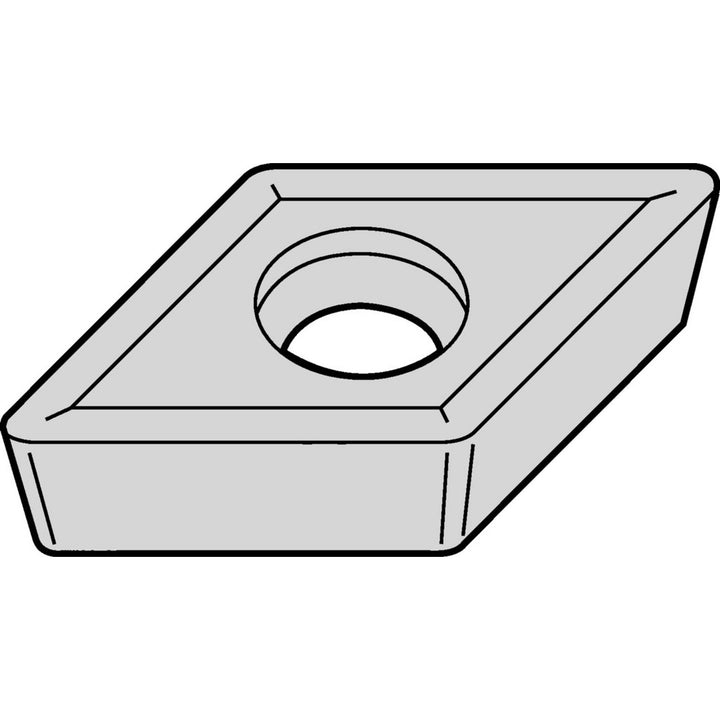

The Widia 6671913 is a DCMT11T308 carbide indexable insert, grade WK15CT, TiCN coated. Suited for cast iron.
Specifications
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1750
Included angle55
Industry standard numberDCMT3252
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeRhombic
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308
Length range0.7000 - 10.0000
Manufacturers catalog number6671913
Manufacturer gradeWK15CT
Material gradeM20
Maximum depth of cut0.1526
Multi use applicationTurning
Multi use toolNo
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
