Widia

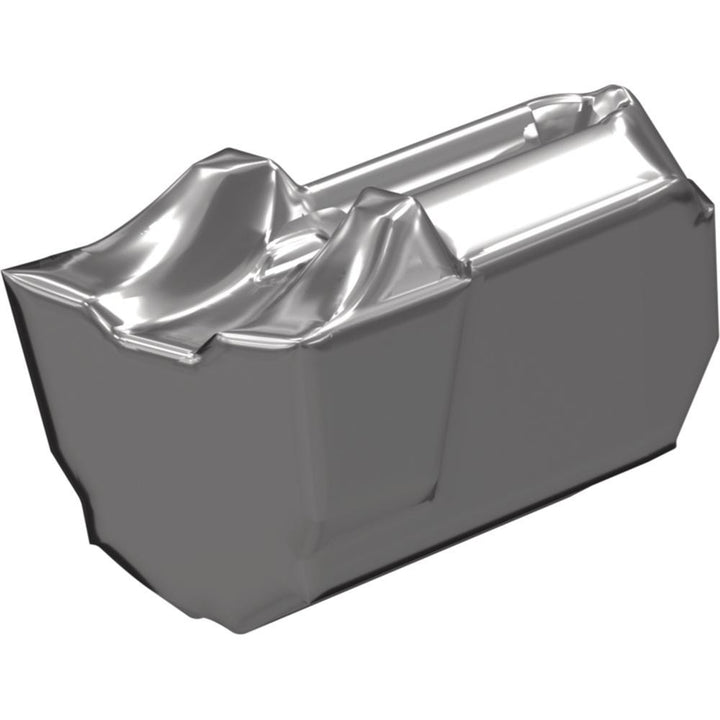

WC188I04PN00F05 Carbide Insert, Grade WU10PT, AlTiN - Widia 6686101
MFR# 6686101ISO/ANSI# WC188I04PN00F05Cat# WC188I04PN00F05Series WGC
$17.92List $22.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU10PT
MaterialCarbide
CoatingAlTiN
Description
The Widia 6686101 is a WC188I04PN00F05 carbide indexable insert, grade WU10PT, AlTiN coated. Suited for super-alloys & titanium.
Specifications
Ansi codeWC188I04PN00F05
ChipbreakerF
Coating finishAlTiN
Coating processPVD
Corner radius0.0080
Cutting directionNeutral
Cutting height0.1765
Cutting tool applicationCut-Off
Cutting width in3/16
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size code188I
Insert styleWGC
Insert width0.1409
Iso codeWC188I04PN00F05
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberWC188I04PN00F05
Manufacturer gradeWU10PT
Maximum depth of cut0.4000
Multi use toolNo
Overall length0.4000
Overall width0.1875
Primary workpiece materialSuper-alloys & Titanium
Relief angle10.500
Secondary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Single or double endSingle
Width tolerance0.025 (mm)
