Widia

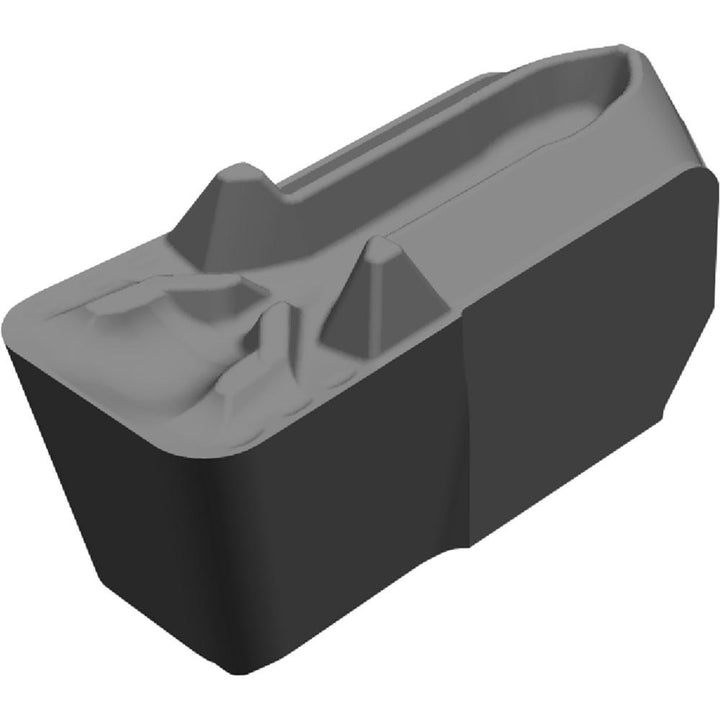

WG125I03P05PT Carbide Insert, Grade WU25PT, TiAlN - Widia 6686432
MFR# 6686432ISO/ANSI# WG125I03P05PTCat# WG125I03P05PTSeries WGC
$17.68List $22.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 6686432 is a WG125I03P05PT carbide indexable insert, grade WU25PT, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWG125I03P05PT
Chip breakerPT
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting height0.0883
Cutting width in1/8
Full radiusNo
Insert handNeutral
Insert height0.1578
Insert holding methodClamp
Insert materialCarbide
Insert size3
Insert size code3
Insert styleWGC
Insert thickness0.1578
Iso codeWG125I03P05PT
Lead angle10
Manufacturers catalog numberWG125I03P05PT
Manufacturer gradeWU25PT
Maximum depth of cut0.0882
Maximum groove width (mm)3.18
Minimum groove width (mm)3.18
Multi use toolNo
Number of cutting edges1
Overall length0.3761
Overall width0.1016
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle10
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
