Widia

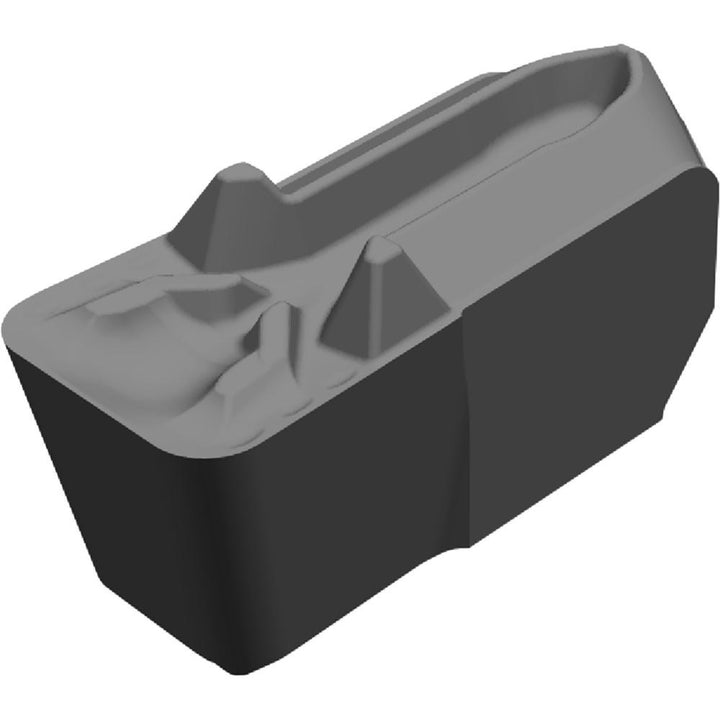

WG188I04P08PT Carbide Insert, Grade WU25PT, TiAlN - Widia 6686433
MFR# 6686433ISO/ANSI# WG188I04P08PTCat# WG188I04P08PTSeries WGC
$17.92List $22.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWU25PT
MaterialCarbide
CoatingTiAlN
Description
The Widia 6686433 is a WG188I04P08PT carbide indexable insert, grade WU25PT, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeWG188I04P08PT
Chip breakerPT
Coating finishTiAlN
Coating processPVD
Corner radius0.0126
Cutting height0.1059
Cutting width in3/16
Full radiusNo
Insert handNeutral
Insert height0.1739
Insert holding methodClamp
Insert materialCarbide
Insert seat size4
Insert size4
Insert size code4
Insert styleWGC
Insert thickness0.1739
Iso codeWG188I04P08PT
Lead angle10
Manufacturers catalog numberWG188I04P08PT
Manufacturer gradeWU25PT
Maximum depth of cut0.1059
Maximum groove width (mm)4.76
Minimum groove width (mm)4.76
Multi use toolNo
Number of cutting edges1
Overall length0.3993
Overall width in9/64
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle10
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Cast Iron
